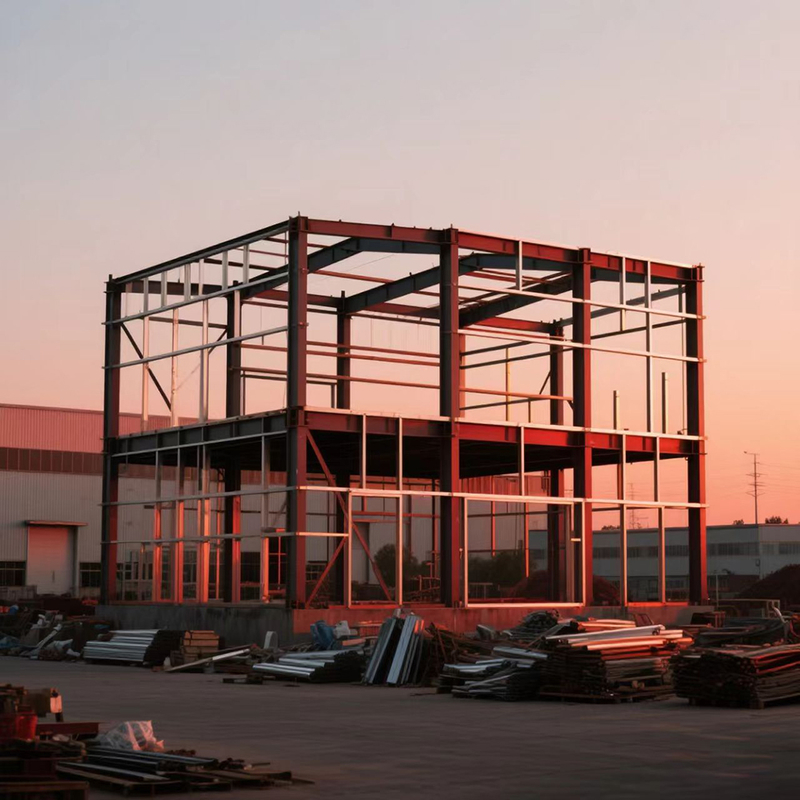

Modular Prefabricated Steel Structure Warehouse High Quality Structural Metal Frame

Modular Prefabricated Steel Structure Warehouse High Quality Structural Metal Frame

Brand Name:	YDX
Model Number:	YDX-FB1
MOQ:	50-10000 square meters
Price:	$35.00-$63.00
Delivery Time:	20-30 works days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA,QINGDAO

Certification:

CE ISO SGS

Size::

Customized

Color::

Customized

Material::

Q235,Q355

Use::

Warehouse, Workshop

Roof::

Glass Wool, EPS, PU

Material::

Steel, Purlin, Column

Packaging Details:

Exported standard packing

Supply Ability:

10000 tons/month

Product Description

Modular Prefabricated Steel Structure Warehouse High Quality Structural Metal Frame

Product Description

Steel buildings are the most flexible solutions on the market for contractors, builders, do it yourselfers and their families. These durable, virtually no maintenance building solutions come with significant benefits. Custom engineering and design of today's metal buildings allow owners to have the look they want, with the functionality they need.

The stringent state-of-the-art requirements of today's building owners demand that their building system employ not only advanced designs, but also offer flexibility, energy efficiency, and speedy construction times. When a steel building is used, design, fabrication, and construction times are greatly reduced. And future expansion is uncomplicated.

Structure Specification

Product Application
Light Frame Steel Construction Hangar Design Prefabricated Steel Structure Factory Building Workshop warehouse
A pre-engineered steel building is a modern technology where the complete designing is done at the factory and the building components are brought to the site and then fixed/jointed at the site, all is bolt connection, no need any welding!
An efficiently designed pre-engineered building can be lighter than the conventional steel buildings by up to 30%. Lighter weight equates to less steel and potential price savings in structural framework.
SPECIFICATION FOR STEEL STRUCTURE BUILDING
Main Steel Frame	Steel Column & Beam	1. Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel
		2. Surface: Hot Dip Galvanized or Painted;
		3. Connection: All Bolts Connection;
Supporting System	Roof Purlin	C or Z Section Steel, Q235B
	Wall Purlin	C or Z Section Steel, Q235B
	Bracing	Steel Rod, Q235B
	Cross Support	Steel Rod, Q235B
	Column Support	Angle Steel; Steel Rod; Q235B
	Angle Brace	Angle steel,Q235B
	Tie Bar	Steel Pipe,Q235B
	Roof & Wall System	1. Single Colorful Corrugated Steel Sheet; Thickness: 0.3-0.8mm
	Roof & Wall System	2. Sandwich Panel with EPS, Rock Wool, Fiberglass,PU; Thickness: 50-150mm;
Accessories	Door	Sliding; Rolled Up Door (Manual/Auto)
	Window	Aluminum Alloy; PVC;
	Downspout	PVC pipe;
	Gutter	Galvanized Steel Sheet; Stainless Steel
	Ventilator	Stainless Steel Turbine Ventilator
	Skylight Belt	FRP or PC semi-transparent Skylight Belt
	Flash	Color Steel Sheet
	Fittings	Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc
