Brand Name: | YDX |
Model Number: | YDX-AFG5 |
MOQ: | 50-10000 square meters |
Price: | $35.00-$63.00 |
Delivery Time: | 20-30 works days |
Payment Terms: | T/T |
Multi Functional Metal Warehouse Buildings Prefabricated Z Purlin
Prefabricated Steel Structure are used for diverse applications such as Warehouse; Workshop; Factory; Cold storage building; High-rise building; Shopping mall; Power plants; Distribution centers; Pedestrian bridge; Steel structure hotels; Prefabricated public schools; Sports arenas & sports hall; Car parking center; Airplane hangars & aviation hangars; Church building & Community center; Poultry farm; Agricultural building & barns; Storage shed; Self-storage building; Green house; Garage; Commercial building; Industrial building and many more.
Cost-effective
Compared to other framing materials, structural steel brings greater value to a project in terms of initial cost as well as reduces costs in other areas.
Accelerated schedules

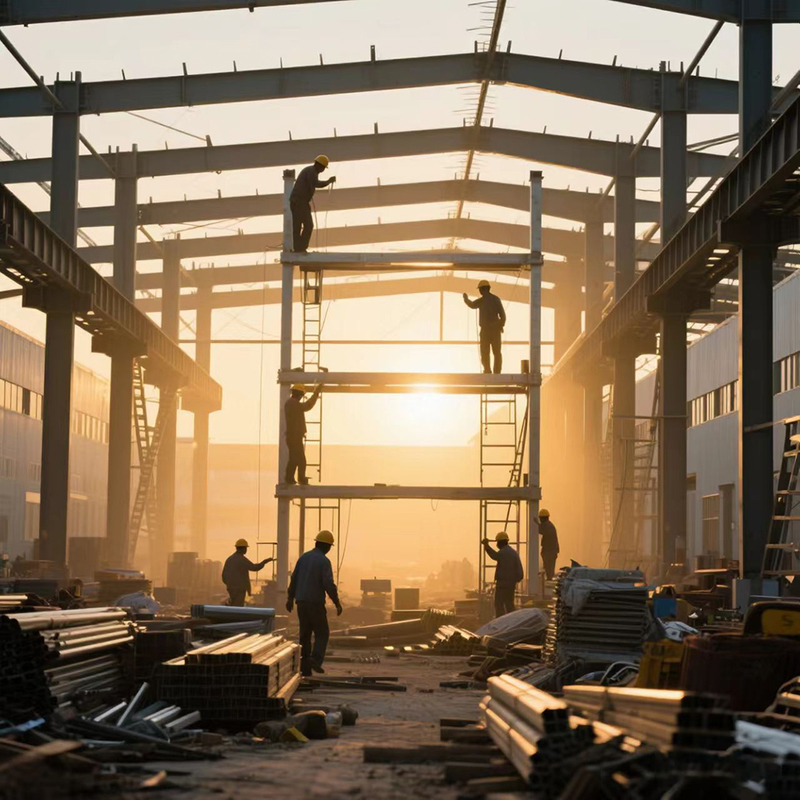

Structural steel is fabricated off-site while preliminary site preparation and foundation work are being performed. It is then brought to the site and rapidly erected, accelerating the overall project schedule.
Quality
Structural steel is fabricated off-site under controlled conditions, ensuring a high-quality product and reducing the number of costly fixes at the job site.
Recycling
Today's modern steel mills produce steel containing an average of 90% recycled material. At the end of a building's life cycle, 100% of the steel frame can be recycled.
Safety
By using prefabricated building solutions construction time is significantly shorter, meaning less time and fewer reasons for accidents to occur.
Future Adaptability
Steel buildings and frames are easily expanded either upwards or to any side. Because steel is extremely strong for its weight it can support the added weight of new stories.
3. Product Specifiactions
Product Application | |||
Light Frame Steel Construction Hangar Design Prefabricated Steel Structure Factory Building Workshop warehouse | |||
A pre-engineered steel building is a modern technology where the complete designing is done at the factory and the building components are brought to the site and then fixed/jointed at the site, all is bolt connection, no need any welding! | |||
An efficiently designed pre-engineered building can be lighter than the conventional steel buildings by up to 30%. Lighter weight equates to less steel and potential price savings in structural framework. | |||
SPECIFICATION FOR STEEL STRUCTURE BUILDING | |||
Main Steel Frame | Steel Column & Beam | 1. Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel | |
2. Surface: Hot Dip Galvanized or Painted; | |||
3. Connection: All Bolts Connection; | |||
Supporting System | Roof Purlin | C or Z Section Steel, Q235B | |
Wall Purlin | C or Z Section Steel, Q235B | ||
Bracing | Steel Rod, Q235B | ||
Cross Support | Steel Rod, Q235B | ||
Column Support | Angle Steel; Steel Rod; Q235B | ||
Angle Brace | Angle steel,Q235B | ||
Tie Bar | Steel Pipe,Q235B | ||
Roof & Wall System | 1. Single Colorful Corrugated Steel Sheet; Thickness: 0.3-0.8mm |
||
2. Sandwich Panel with EPS, Rock Wool, Fiberglass,PU; Thickness: 50-150mm; |
|||
Accessories | Door | Sliding; Rolled Up Door (Manual/Auto) | |
Window | Aluminum Alloy; PVC; | ||
Downspout | PVC pipe; | ||
Gutter | Galvanized Steel Sheet; Stainless Steel | ||
Ventilator | Stainless Steel Turbine Ventilator | ||
Skylight Belt | FRP or PC semi-transparent Skylight Belt | ||
Flash | Color Steel Sheet | ||
Fittings | Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc |
