Heavy Duty Steel Structure Workshop Prefabricated Building

Heavy Duty Steel Structure Workshop Prefabricated Building
Heavy Duty Steel Structure Workshop Prefabricated Building
Heavy Duty Steel Structure Workshop Prefabricated Building Heavy Duty Steel Structure Workshop Prefabricated Building Heavy Duty Steel Structure Workshop Prefabricated Building Heavy Duty Steel Structure Workshop Prefabricated Building Heavy Duty Steel Structure Workshop Prefabricated Building Heavy Duty Steel Structure Workshop Prefabricated Building Heavy Duty Steel Structure Workshop Prefabricated Building

Large Image :  Heavy Duty Steel Structure Workshop Prefabricated Building

Product Details:
Place of Origin: CHINA,QINGDAO
Brand Name: YDX
Certification: CE ISO SGS
Model Number: YDX-DF5
Payment & Shipping Terms:
Minimum Order Quantity: 50-10000 square meters
Price: $35.00-$63.00
Packaging Details: Exported standard packing
Delivery Time: 20-30 works days
Payment Terms: T/T
Supply Ability: 10000 tons/month
Contact Now Chat Now

Heavy Duty Steel Structure Workshop Prefabricated Building

Description
Dimensions: Customers' Requirement Construction Type: Frame Building
Installation Time: Faster Construction Time Window: Aluminum Sliding Window
Surface: Galvanized Or Prepainted Key: Versatility
Finish: Galvanized/Painted/Cladding Product Assembly: Easy To Assemble
Grade: Q235 Q355B Color: Customized
Main Structure: Welded/Hot Rolled H Section Steel Type: Steel Structure Building Construction
Highlight:

heavy duty steel workshop building

,

prefabricated steel structure building

,

steel frame construction workshop

Heavy Industry Steel Structure Workshop Prefabricated Building
Product Specifications
Dimensions Customers' Requirement
Construction Type Frame Building
Installation Time Faster construction time
Window Aluminum sliding window
Surface Galvanized Or Prepainted
Key Feature Versatility
Finish Galvanized/Painted/Cladding
Product Assembly Easy To Assemble
Grade Q235 Q355B
Color Customized
Main Structure Welded/Hot Rolled H Section Steel
Type Steel Structure Building Construction
Product Overview

Expertly designed industrial steel buildings for heavy industry applications, featuring durable construction and customizable configurations.

  • Application: Heavy Industry Steel Structure Workshop
  • Usage: Prefabricated Industrial Steel Buildings
  • Type: Steel Structure Workshop
  • Raw steel material: Q235B, Q355B
  • Surface treatment: Painting or Hot-dip Galvanize
  • Columns and Beam: H Section Column & Beam
  • Standard: GB, AISC, ISO
Project Specifications

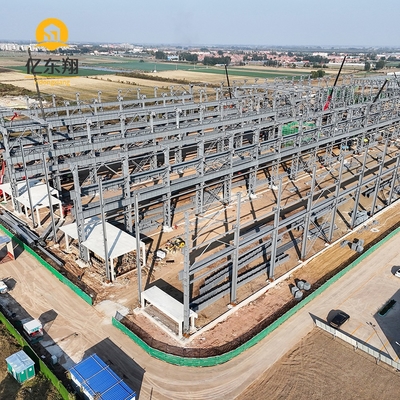

This heavy steel structure workshop was designed and built for Volkswagen, covering approximately 36,000 square meters with a workshop height of 15m, utilizing about 3300 tons of steel.

  • Type: Multi-span, single floor
  • Base: Concrete and steel foundation bolts
  • Column and beam: Q345 & Q235 steel, all bolts connection
  • Bracing: X or V type bracing made from angle, round pipe
  • C or Z purlin: Size from C100~C320, Z160~Z300
  • Roof and wall panel: Aluminum composite panel
  • Accessories: Semi-transparent skylight belts, ventilators, down pipe
  • Derusting: Shot blasting for main components
  • Installation: Managed by on-site Project Manager
Design Capabilities

Our comprehensive design services include preliminary layout drawings, shop drawings, 3D Tekla models, and installation drawings.

Heavy Duty Steel Structure Workshop Prefabricated Building 0
Material Specifications
Primary Framing Box beam column, cross steel column, H-shaped steel column, steel beam
Secondary Framing Galvanized Z and C sections purlin
Roof and Wall panels Steel sheet and insulated sandwich panels (EPS, fiberglass wool and PU)
Steel Decking Floor Galvanized steel decking board
Structural subsystem Divider, gutter, awning, partition wall
Mezzanines, Platforms Painted or galvanized H beam
Other Building Accessories Sliding doors, roll up doors, aluminium windows, louvers, etc.
Service Life 50-70 years
Place of Origin Qingdao, Shandong, China
Application Workshop, warehouse, poultry house, garage etc
Custom Design & Quotation
  • Customized design is welcomed
  • For accurate quotation and drawings, please provide length, width, eave height and local weather conditions
Steel Structure Warehouse Composition
Column and Beam Material Q355 box or H-shaped steel (painted or galvanized)
Steel Structure Spraying Galvanized or painted
Wall & Roof Purlin C or Z section steel
Wall & Roof Panel Colorful corrugated steel sheet, sandwich panels with EPS, rock wool, fiber glass, PU etc.
Support Steel angle, steel pipe, steel round
Gutter Steel sheet or galvanized steel sheet
Downpipe PVC pipe
Door Sliding sandwich panel door or rolling metal door
Window PVC or aluminum alloy windows
Accessory Anchor bolt, high strengthen bolt, normal Bolt, skylight Belts, ventilators, etc
Applications

Our steel structure buildings have many applications including workshop, warehouse, office building, multi-story building, hangar, garage, livestock farm, poultry farm, etc.

Heavy Duty Steel Structure Workshop Prefabricated Building 1
Key Advantages
  • Wide span: Single span or multi-span configurations
  • Cost-effective: Unit price range from $50/m² to $90/m²
  • Durable: 30-50 year service life
  • Efficient: Fast construction and easy installation
  • Performance: Environmental protection, stable structure, earthquake resistance
  • Low cost and convenient
  • Easy assembly and disassembly many times without damage
  • Widely used in construction site, office building, etc.
  • Good environmental protection
Packing & Shipping

All structural components, panels, bolts and accessories are packed to withstand ocean transportation and loaded into 40'HQ containers.

Heavy Duty Steel Structure Workshop Prefabricated Building 2
