Galvanized Steel Structure Hangar Q355 Q235 with Sandwich Panel

Galvanized Steel Structure Hangar Q355 Q235 with Sandwich Panel
Galvanized Steel Structure Hangar Q355 Q235 with Sandwich Panel
Galvanized Steel Structure Hangar Q355 Q235 with Sandwich Panel Galvanized Steel Structure Hangar Q355 Q235 with Sandwich Panel Galvanized Steel Structure Hangar Q355 Q235 with Sandwich Panel Galvanized Steel Structure Hangar Q355 Q235 with Sandwich Panel Galvanized Steel Structure Hangar Q355 Q235 with Sandwich Panel Galvanized Steel Structure Hangar Q355 Q235 with Sandwich Panel

Large Image :  Galvanized Steel Structure Hangar Q355 Q235 with Sandwich Panel

Product Details:
Place of Origin: CHINA,QINGDAO
Brand Name: YDX
Certification: CE ISO SGS
Model Number: YDX-55FF
Payment & Shipping Terms:
Minimum Order Quantity: 1-10000 square meters
Price: $35.00-$63.00
Packaging Details: Exported standard packing
Delivery Time: 20-30 works days
Payment Terms: T/T
Supply Ability: 10000 tons/month
Contact Now Chat Now

Galvanized Steel Structure Hangar Q355 Q235 with Sandwich Panel

Description
Main Frame:: Q355 Q235 Window：: Aluminum Alloy Window
Door：: Sliding Door, Rolling Door Wall & Roof:: Sandwich Panel; Color Steel Sheet
Secondary Structure：: Purlin; Brace, Knee Brace Etc Cladding:: PU/Rock Wool/Fiberglass/EPS
Highlight:

Steel Structure Hangar Galvanized

,

Anti Corrosion Steel Structure Hangar

,

Galvanized Metal Warehouse Building

Anti Corrosion Steel Structure Hangar Galvanized Sheet Metal Warehouse Building
Product Specifications
Attribute Value
Main Frame Q355 Q235
Window Aluminum Alloy window
Door Sliding Door, Rolling Door
Wall & Roof Sandwich Panel; Color Steel Sheet
Secondary Structure Purlin; Brace, Knee Brace Etc
Cladding PU/Rock Wool/Fiberglass/EPS
Product Description

Space Frame Steel Structure Building Galvanized Sheet Metal Warehouse Steel Structure Hanger

Steel Structure Characteristics

Steel structure refers to a building system primarily composed of steel materials, connected through welding, bolting, etc. It features high strength, lightweight, fast construction speed, and recyclability.

Key Components
  • Primary Framing: Box beam column, cross steel column, H-shaped steel column, steel beam
  • Secondary Framing: Galvanized Z and C sections purlin
  • Roof and Wall panels: Steel sheet and insulated sandwich panels (EPS, fiberglass wool and PU)
  • Steel Decking Floor: Galvanized steel decking board
  • Structural subsystem: Divider, gutter, awning, partition wall
  • Mezzanines, Platforms: Painted or galvanized H beam
  • Other Building Accessories: Sliding doors, roll up doors, aluminium windows, louvers, etc.

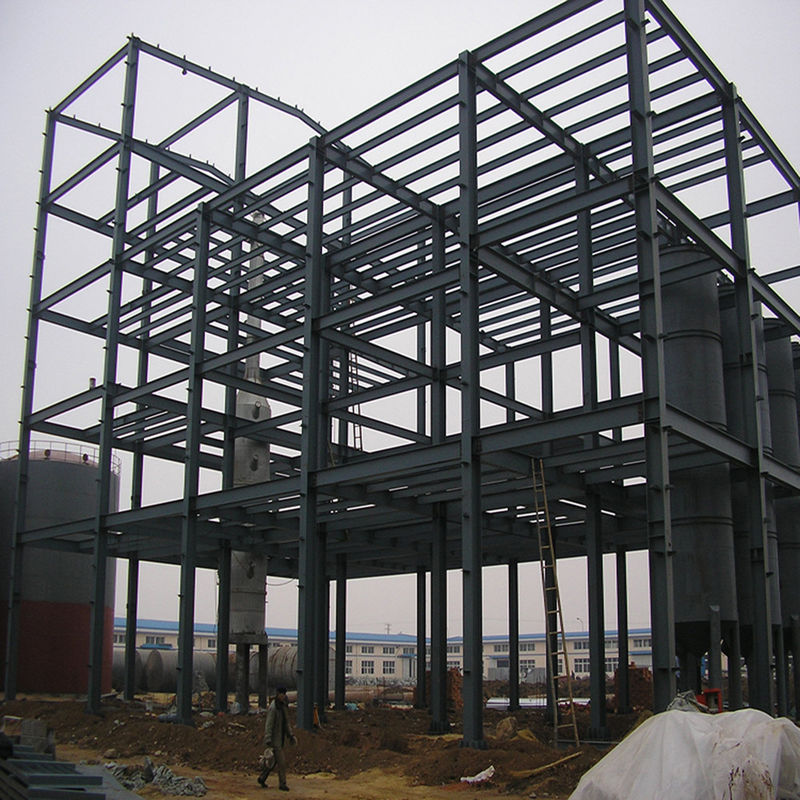

Galvanized Steel Structure Hangar Q355 Q235 with Sandwich Panel 0

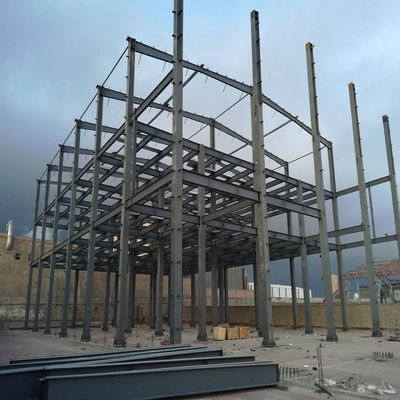

Galvanized Steel Structure Hangar Q355 Q235 with Sandwich Panel 1

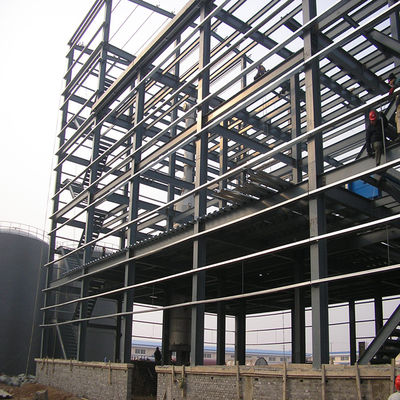

Galvanized Steel Structure Hangar Q355 Q235 with Sandwich Panel 2
Technical Specifications
Service Life 50-70years
Support steel angle, steel pipe, steel round
Place of Origin Qingdao, Shandong, China
Application workshop, warehouse, poultry house, garage etc
Grade Q235B, Q355B or as per customer's need
Bolt Grade M20, M16, M14 etc
Custom Design & Quotation

(1) Customized design is welcomed.
(2) For accurate quotation and drawings, please provide: length, width, eave height and local weather conditions.

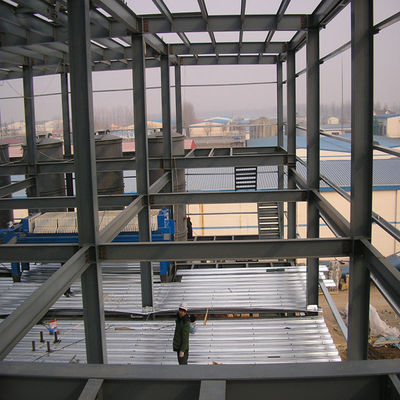

Galvanized Steel Structure Hangar Q355 Q235 with Sandwich Panel 3

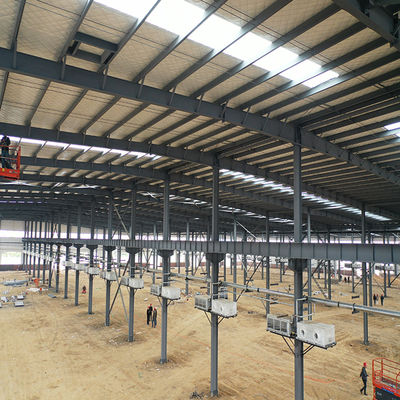

Galvanized Steel Structure Hangar Q355 Q235 with Sandwich Panel 4
Project Requirements Questionnaire

Please provide the following information for accurate pricing:

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. snow height) _____kn/m2, _____mm
5 Anti-earthquake _____level
6 Brickwall needed or not If yes, 1.2m high or 1.5m high
7 Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, metal steel sheets will be used
8 Door quantity & size _____units, _____(width)mm*_____(height)mm
9 Window quantity & size _____units, _____(width)mm*_____(height)mm
10 Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
