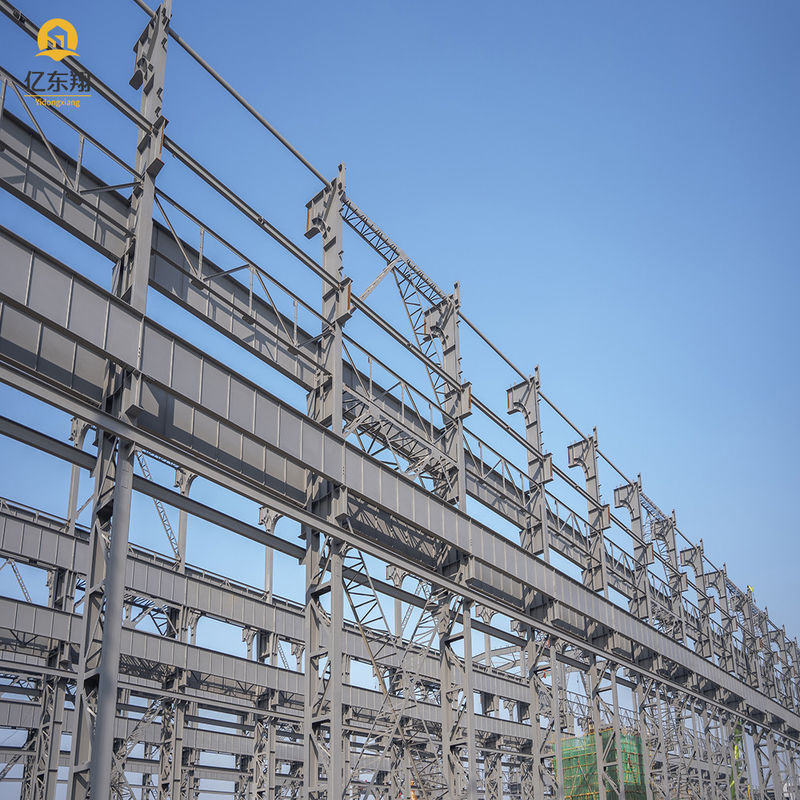

Prefab Steel Hangar Buildings Galvanized Prefabricated Steel Construction Warehouse

Prefab Steel Hangar Buildings Galvanized Prefabricated Steel Construction Warehouse
Prefab Steel Hangar Buildings Galvanized Prefabricated Steel Construction Warehouse
Prefab Steel Hangar Buildings Galvanized Prefabricated Steel Construction Warehouse Prefab Steel Hangar Buildings Galvanized Prefabricated Steel Construction Warehouse Prefab Steel Hangar Buildings Galvanized Prefabricated Steel Construction Warehouse Prefab Steel Hangar Buildings Galvanized Prefabricated Steel Construction Warehouse Prefab Steel Hangar Buildings Galvanized Prefabricated Steel Construction Warehouse

Large Image :  Prefab Steel Hangar Buildings Galvanized Prefabricated Steel Construction Warehouse

Product Details:
Place of Origin: CHINA,QINGDAO
Brand Name: YDX
Certification: CE ISO SGS
Model Number: YDX-S120
Payment & Shipping Terms:
Minimum Order Quantity: 10-10000 square meters
Price: $30.00-$65.00
Packaging Details: Exported standard packing
Delivery Time: 20-30 works days
Payment Terms: T/T,L/C,Western Union,MoneyGram
Supply Ability: 10000 tons/month
Contact Now Chat Now

Prefab Steel Hangar Buildings Galvanized Prefabricated Steel Construction Warehouse

Description
Main Frame:: Q355 Q235 Wall & Roof:: Sandwich Panel; Color Steel Sheet
Column & BeamConnection:: High Strength Bolt Advantage：: Easy & Fast Install
Surface Treatment: Galvanized / Painted Design Parameter: Wind Load,Snow Load And Earthquake
Wall: Steel Sheet Or Sandwich Panels Door: Sliding Door Or Rolling Door
Drainage System: Outer&inner Gutter With Down Pipe Instaollation: Engineer's Guidance
Column: H-section Beam Sustainability: Eco-friendly
Structure Type: Frame Frame Type: Steel Frame
Earthquake Resistance: Strong Windows: Aluminum
Seismic Design: High Seismic Zone Installation Time: Short
Aesthetics: Modern Construction Type: Frame
Cost: Moderate Product Resistance: Corrosion Resistant
Finish: Galvanized/Painted/Cladding Roof: Glass Wool, EPS, PU
Product Fire Resistance: Fireproof
Highlight:

Prefab Steel Hangar Buildings

,

Steel Hangar Buildings Galvanized

,

Prefabricated Steel Construction Warehouse

Prefab Steel Hangar Buildings Galvanized Prefabricated Steel Construction Warehouse
Premium Prefabricated Steel Structure Solutions

Our steel structures are engineered for durability and efficiency, constructed through precision welding and bolting methods. Ideal for industrial plants, warehouses, hangars, and commercial buildings, these structures combine strength with versatility.

Key Characteristics of Our Steel Structures
  • High Strength: Superior load-bearing capacity suitable for large-span and high-rise applications
  • Lightweight Construction: Reduced foundation loads compared to traditional concrete structures
  • Exceptional Plasticity: Withstands significant deformation with excellent seismic performance
  • Low-Temperature Toughness: Maintains structural integrity in cold environments
  • Rapid Construction: Factory-prefabricated components enable fast on-site assembly
  • Eco-Friendly: Fully recyclable materials minimize construction waste
  • Superior Sealing: Welded joints provide excellent air and water tightness
Technical Specifications
Item Specification
Model Single slope, double slope, multi slope. Single span, double-span, Multi-span. Single floors, Double floors
Main Steel Grade Q235B, Q345B
Column & Beam Welded or Hot rolled H-section steel, constant or variable cross-section. H 160~2000*150~800*6/8/10*6/8/10/12mm with two coats of primer and finish paint
Wall & Roof Panel EPS, Fiber glass, Rockwool, PU sandwich panel 50/75/100mm, and corrugated steel sheet 0.5~0.8 mm
Wall & Roof Purlin C / Z channel steel, Hot dip galvanized. C80~C300, Z100~Z300
Bracing X or V type Steel round bar, Angle steel and tubes, painted or galvanized
Accessories Screw, Rivet, Foam closures, Sealant, Ventilator, etc
Prefab Steel Hangar Buildings Galvanized Prefabricated Steel Construction Warehouse 0 Prefab Steel Hangar Buildings Galvanized Prefabricated Steel Construction Warehouse 1 Prefab Steel Hangar Buildings Galvanized Prefabricated Steel Construction Warehouse 2 Prefab Steel Hangar Buildings Galvanized Prefabricated Steel Construction Warehouse 3
Our Competitive Advantages
  1. Professional design team capable of custom drawings or steel quantity calculations
  2. Skilled fabrication team with advanced equipment and project-specific production schedules
  3. Comprehensive one-stop service with integrated project proposals
  4. Dedicated QC team ensuring product and service quality
  5. Reliable after-sales support for maintenance and technical assistance
Project Specification Form
Item Details
1. Location (where will be built?) _____country, area
2. Size: length*width*height _____mm*_____mm*_____mm
3. Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4. Snow load (max. snow height) _____kn/m2, _____mm
5. Anti-earthquake _____level
6. Brickwall needed or not If yes, 1.2m high or 1.5m high
7. Thermal insulation EPS, fiberglass wool, rockwool, PU sandwich panels or metal steel sheets
8. Door quantity & size _____units, _____(width)mm*_____(height)mm
9. Window quantity & size _____units, _____(width)mm*_____(height)mm
10. Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
Prefab Steel Hangar Buildings Galvanized Prefabricated Steel Construction Warehouse 4
