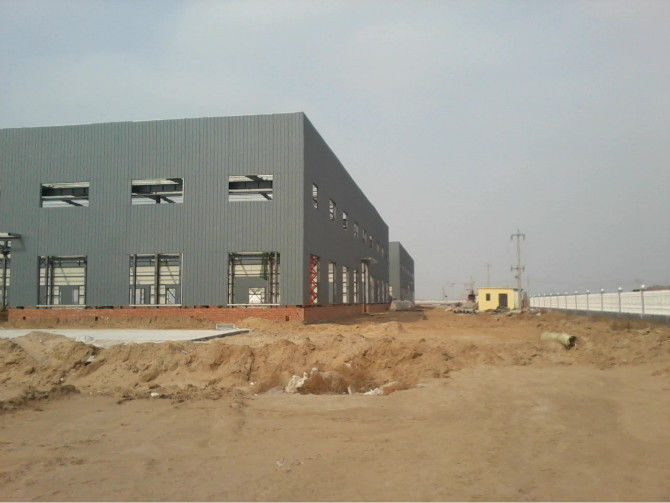

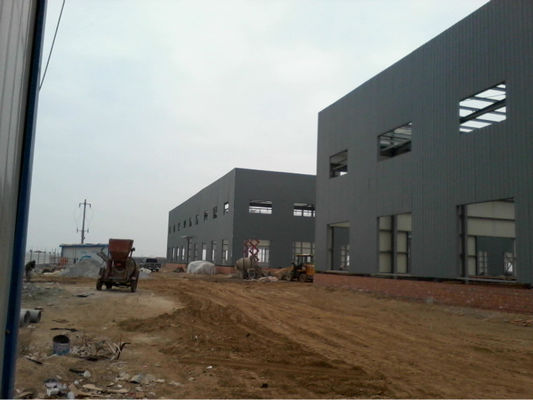

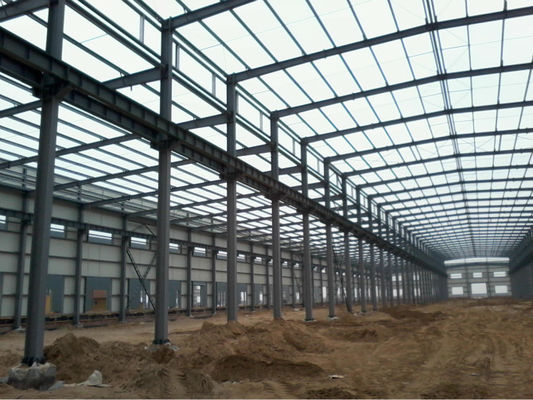

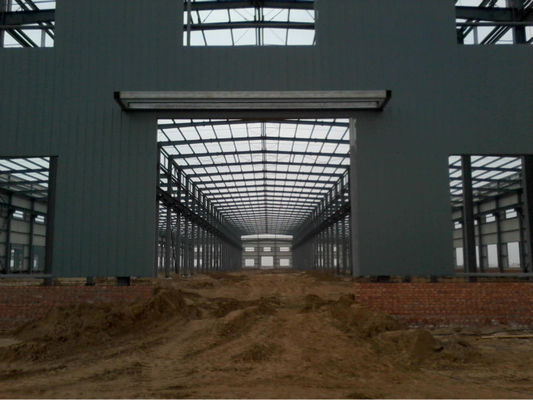

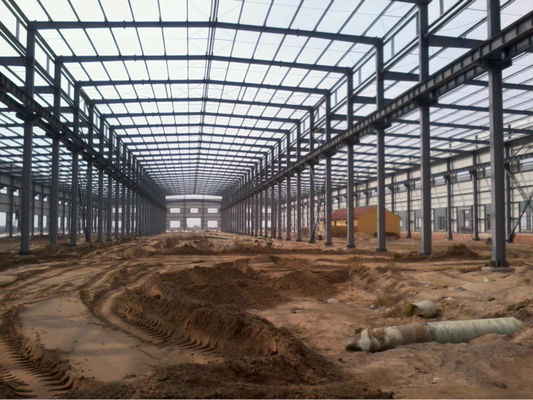

Light Weight Prefabricated Steel Structure Warehouse
Pre-engineered structural steel building offering superior flexibility, seismic resistance, and rapid construction timelines.
Product Specifications
| Attribute |
Value |
| Type |
Steel structure Frame Building |
| Window |
Aluminum sliding window |
| Structure |
Frame |
| Purlin |
C or Z Section Galvanized Steel |
| Earthquake Resistance |
Strong |
| Seismic Design |
High Seismic Zone |
| Installation Time |
Short |
| Finish |
Galvanized/Painted/Cladding |
| Roof |
Glass Wool, EPS, PU |
| Product Fire Resistance |
Fireproof |
Structural Efficiency & Design Flexibility
Core Features
- Span-to-Weight Ratio: Achieves 40:1 spans (e.g., 60m clear span at 1.5t/m² load)
- Modular Components: Standardized beams (C/Z purlins), columns (H-sections), and panels
- Customization: Adaptable to heights (6-30m) and irregular footprints (L/T/U shapes)
Technical Advantages
- Rapid Reconfiguration: Bolt-connected systems enable layout changes in 72hrs
- Column-Free Spaces: Optimized for automated storage systems (AS/RS)
- Seismic Resilience: Base isolation systems reduce seismic forces by 60% (Zone 4 compliance)
Material Specifications
| Component |
Material Grade |
Thickness Range |
Corrosion Resistance |
| Primary Frame |
ASTM A992 (Fy=345 MPa) |
6-20mm |
Hot-dip galvanized |
| Roof Panels |
Galvalume® (AZ150) |
0.4-1.2mm |
25-year warranty |
| Insulation |
PIR Foam (λ=0.022 W/m*K) |
50-150mm |
Fire Rating: Class A |
Accelerated Construction Process
Prefabrication Benefits
- Factory Precision: CNC cutting (±0.5mm tolerance) and robotic welding
- On-site Timeline: 500m² warehouse erected in 15 days (vs. 90 days for concrete)
- Weather Resistance: 95% work completed off-site minimizes weather delays
Phase Comparison
| Phase |
Traditional (Days) |
Prefab Steel (Days) |
Time Saved |
| Foundation |
30 |
20 |
33% |
| Structural Erection |
45 |
8 |
82% |
| Enclosure |
25 |
5 |
80% |
Our Service
We provide comprehensive services including design, manufacturing, installation, and after-sale support.
Our experienced engineers will create customized solutions based on your specific requirements.
We offer installation guidance, supervision, and training services with 24-hour online support.
Quality Control
- Weekly Quality Audit meetings to address processing weaknesses
- Bi-weekly employee training sessions
- ISO 9001 Quality Control System compliance
- Monthly client feedback collection for continuous improvement
- Detailed quality inspection reports for every production process
Frequently Asked Questions
What kind of Industry Steel Workshop do you need?
Our experienced engineers can design buildings to your exact specifications, treating your investment with the utmost seriousness.
Are you manufacturer or trade company?
We are professional manufacturers of steel structure buildings.
Do you offer guiding installation on site overseas for warehouse building?
Yes, we provide installation, supervision, and training services with professional installation drawings and 24-hour online support.
What's the quality assurance you provided?
Our professional QC team monitors quality at all stages, and we accept third-party inspections from agencies like SGS and BV.
Could you offer designing service?
Yes, our complete engineering team uses state-of-the-art design software to provide economical solutions at no extra cost for preliminary designs.
Is there any warranty available on the steel structure buildings?
Our steel structures have a limited warranty and can last 50-100 years depending on material quality, design standards, and maintenance.
