| Brand Name: | YDX |
| Model Number: | YDX-AF4F |
| MOQ: | 50-10000 square meters |
| Price: | $35.00-$63.00 |
| Delivery Time: | 20-30 works days |
| Payment Terms: | T/T |
Prefab Steel Frame Large Metal Sheds Workshops Construction
| Product Application | |||
| Light Frame Steel Construction Hangar Design Prefabricated Steel Structure Factory Building Workshop warehouse | |||

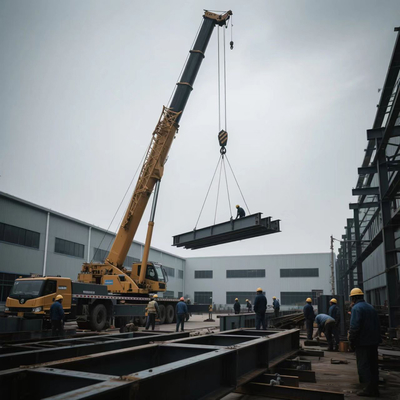

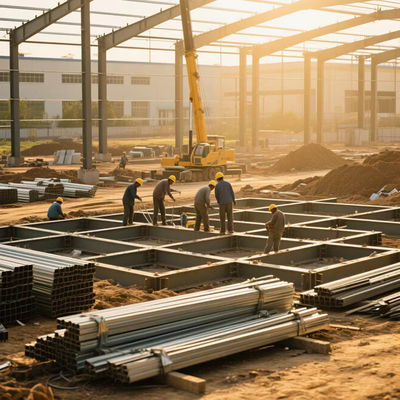

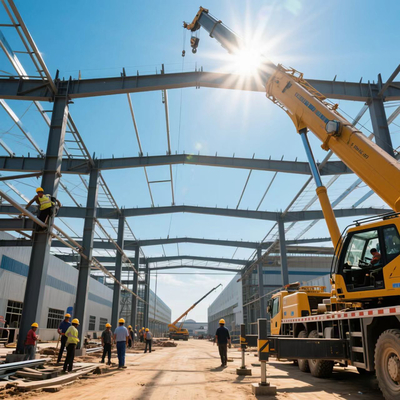

| A pre-engineered steel building is a modern technology where the complete designing is done at the factory and the building components are brought to the site and then fixed/jointed at the site, all is bolt connection, no need any welding! | |||
| An efficiently designed pre-engineered building can be lighter than the conventional steel buildings by up to 30%. Lighter weight equates to less steel and potential price savings in structural framework. | |||
| SPECIFICATION FOR STEEL STRUCTURE BUILDING | |||
| Main Steel Frame | Steel Column & Beam | 1. Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel | |
| 2. Surface: Hot Dip Galvanized or Painted; | |||

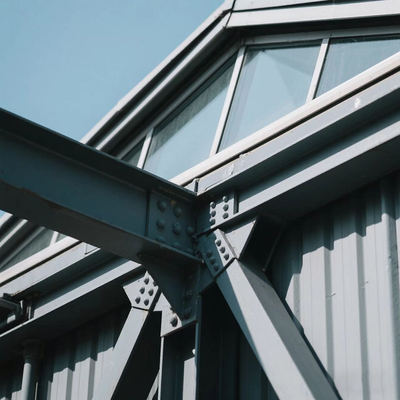

| 3. Connection: All Bolts Connection; | |||
| Supporting System | Roof Purlin | C or Z Section Steel, Q235B | |
| Wall Purlin | C or Z Section Steel, Q235B | ||
| Bracing | Steel Rod, Q235B | ||
| Cross Support | Steel Rod, Q235B | ||
| Column Support | Angle Steel; Steel Rod; Q235B | ||
| Angle Brace | Angle steel,Q235B | ||
| Tie Bar | Steel Pipe,Q235B | ||
| Roof & Wall System | 1. Single Colorful Corrugated Steel Sheet; Thickness: 0.3-0.8mm |
||
| 2. Sandwich Panel with EPS, Rock Wool, Fiberglass,PU; Thickness: 50-150mm; |
|||
| Accessories | Door | Sliding; Rolled Up Door (Manual/Auto) | |
| Window | Aluminum Alloy; PVC; | ||
| Downspout | PVC pipe; | ||
| Gutter | Galvanized Steel Sheet; Stainless Steel | ||
| Ventilator | Stainless Steel Turbine Ventilator | ||
| Skylight Belt | FRP or PC semi-transparent Skylight Belt | ||
| Flash | Color Steel Sheet | ||
| Fittings | Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc | ||
Advantages of exposed fasteners:
1.Easy installation: Exposed fasteners are directly nailed into the outer surface of the sandwich panels, making the installation process relatively simple and quick.
2.Cost-effective: Exposed fasteners are a more economical fixing method, reducing construction costs compared to other complex fastening techniques.
3.Convenient maintenance: If replacement or repairs to the sandwich panels are needed, the exposed fastening method allows for easy disassembly and replacement.
Advantages of concealed fasteners:
1.Aesthetic appearance: Concealed fasteners are fixed at the joints of the sandwich panels, with the nail heads hidden beneath the panel surface, resulting in a neat and smooth external appearance.
2.Waterproof performance: Concealed fasteners help reduce punctures on the surface of the sandwich panels, minimizing the risk of water penetration and enhancing the panels' waterproofing capabilities.
3.Wind resistance: Concealed fasteners improve the overall wind resistance of the sandwich panels, strengthening the connection between the panels and the steel structure, thus enhancing structural stability.
The choice between exposed fasteners and concealed fasteners for securing sandwich panels in a steel structure warehouse depends on specific requirements and aesthetic preferences. Exposed fasteners are suitable for projects that prioritize cost-effectiveness and easy installation, while concealed fasteners are preferable for projects that require a visually appealing appearance, enhanced waterproofing, and improved wind resistance. The selection of the appropriate fixing method should consider factors such as project requirements, budget, and design standards.
