Industrial Prefabricated Steel Frame Building Construction
Prefabricated Industrial Steel Structure Building Beam Metal Construction for industrial applications, offering superior strength, durability, and cost-efficiency.
Introduction to Steel Structures
Steel structures are building structures primarily made of steel, constructed through methods such as welding and bolting. They are widely used in industrial plants, high-rise buildings, bridges, towers, and more. The steel used typically includes sections, plates, and pipes, which offer high strength, good plasticity, and toughness.
Key Characteristics
- High Strength: Superior load-bearing capacity for large-span and high-rise buildings
- Lightweight: Reduced foundation loads compared to concrete structures
- Excellent Plasticity: Withstands significant deformation with superior seismic performance
- Toughness: Maintains integrity even in cold environments
- Fast Construction: Factory-prefabricated components enable rapid on-site assembly
- Eco-Friendly: Fully recyclable materials reduce construction waste
- Superior Sealing: Welded joints provide excellent air and water tightness
- Corrosion Protection Needed: Requires anti-corrosion treatments
- Fireproofing Required: Needs additional fireproofing treatments
Applications

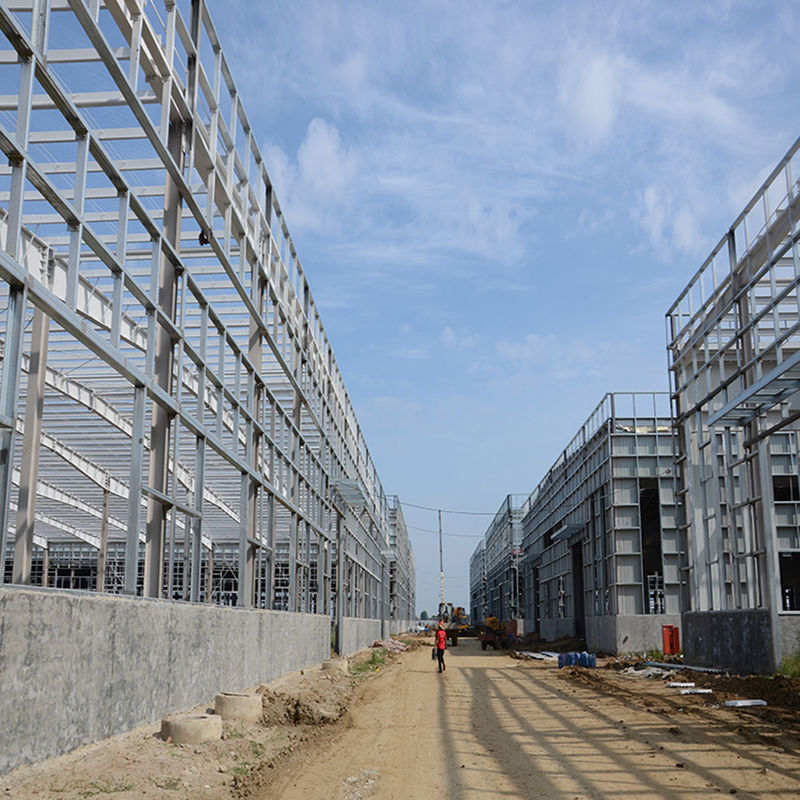

Light Frame Steel Construction Hangar Design Prefabricated Steel Structure Factory Building Workshop warehouse
Pre-engineered steel buildings are designed at the factory with components assembled on-site using bolt connections (no welding required). These structures can be up to 30% lighter than conventional steel buildings, reducing material costs and foundation requirements.
Specifications
Main Steel Frame: Steel Column & Beam - Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel
Surface Treatment: Hot Dip Galvanized or Painted
Connection Method: All Bolts Connection
| Component | Specification |
| Roof Purlin | C or Z Section Steel, Q235B |
| Wall Purlin | C or Z Section Steel, Q235B |
| Bracing | Steel Rod, Q235B |
| Cross Support | Steel Rod, Q235B |
| Column Support | Angle Steel; Steel Rod; Q235B |
Roof & Wall System
- Single Colorful Corrugated Steel Sheet (Thickness: 0.3-0.8mm)
- Sandwich Panel with EPS, Rock Wool, Fiberglass, PU (Thickness: 50-150mm)
Accessories
- Doors: Sliding; Rolled Up Door (Manual/Auto)
- Windows: Aluminum Alloy; PVC
- Downspout: PVC pipe
- Gutter: Galvanized Steel Sheet; Stainless Steel
- Ventilator: Stainless Steel Turbine Ventilator
- Skylight Belt: FRP or PC semi-transparent Skylight Belt
- Flash: Color Steel Sheet
- Fittings: Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc
Our Services
Design Consultation
We provide customized design plans and competitive quotations based on:
- Building dimensions (length × width × height, eave height, roof type)
- Door and window specifications (size, quantity, placement)
- Local climate conditions (wind speed, snow load, earthquake requirements)
- Insulation material preferences (sandwich panel or single metal sheet)
- Crane requirements (capacity and specifications if needed)
- Special requirements (fire proofing, roof isolation, ventilation, daylighting)
Engineering Support
Our experienced engineers will develop optimal solutions tailored to your specific requirements.
Comprehensive Services
We offer complete project support including design, manufacturing, installation, and after-sales service. Optional on-site installation guidance and training available.
Quality Control Process
- Weekly Quality Audit meetings to address processing issues
- Bi-weekly employee training sessions
- ISO 9001 compliant manufacturing processes
- Monthly client feedback collection for continuous improvement
- Detailed quality inspection reports for every production stage
Frequently Asked Questions
Custom Building Designs
Our expert engineers can design any building shape to meet your specific industrial requirements.
Manufacturer Status
We are professional manufacturers of steel structure buildings, not trading companies.
Overseas Installation Support
We provide installation guidance, supervision, and training services internationally, including detailed installation drawings and 24/7 online support.
Quality Assurance
Our professional QC team monitors all manufacturing stages. We welcome third-party inspections from agencies like SGS or BV.
Design Services
Our engineering team uses advanced software (Tekla, AutoCAD, PKPM, etc.) to provide economical solutions at no extra cost for initial designs.
Warranty Information
Our steel structures come with limited warranties and can last 50-100 years depending on materials, design, construction quality, and maintenance.
Project Requirements Form
| Item | Details Required |
| Location | Country, area where building will be constructed |
| Size | Length × width × height (mm) |
| Wind Load | Maximum wind speed (kn/m², km/h, or m/s) |
| Snow Load | Maximum snow height (kn/m² or mm) |
| Earthquake Resistance | Required protection level |
| Brickwall | Required height if needed (1.2m or 1.5m) |
| Thermal Insulation | Material preference (EPS, fiberglass, rockwool, PU panels) |
| Doors | Quantity and dimensions (width × height in mm) |
| Windows | Quantity and dimensions (width × height in mm) |
| Crane | Requirements if needed (quantity, max weight, lifting height) |
