Safe Durable Prefabricated Steel Frame Building Construction Steel Structure Workshop
Premium Prefabricated Steel Structure Building - Cost-Effective, Safe & Durable
| Design Focus |
Description |
| 1. Structural Type |
Choose gabled frames, trusses, or space grids based on span (30-50m for single-span) and load requirements. |
| 2. Load Analysis |
Calculate dead loads, live loads (equipment/snow), wind loads (0.3-0.7kN/m²), and seismic forces per GB50017 code. |
| 3. Joint Design |
Hybrid bolt-welded connections (Grade 8.8/10.9 bolts + fillet/groove welds) ensure force transfer reliability. |
| 4. Fire & Corrosion |
Apply zinc-rich primer (≥80μm) + fireproof coating (1.5-3h rating); hot-dip galvanizing for C4+ environments. |
| 5. Foundation |
Prefer independent foundations (bearing depth <5m); use PHC piles for weak soil with settlement control ≤0.002L. |
| 6. Construction |
Modular prefabrication (±2mm precision), BIM-based collision detection, and 500-ton crane lifting. |
| 7. Materials |
Main structure: Q355B/C steel; high-strength zones: Q460; roofing: Al-Zn coated panels (yield ≥550MPa). |
| 8. Codes |
Comply with GB51022 (light steel codes) and GB50011 (seismic design). |
| 9. Cost Optimization |
Use tapered beams, vierendeel trusses, and purlin spacing optimization (≤1.5m) to reduce steel usage by 10-20%. |
| 10. Expandability |
Reserve column interfaces (e.g., stiffened brackets) and PV mounting bases (load ≥0.15kN/m²). |
Structural Adaptability
Gabled frames dominate single-layer factories (e.g., Tesla Shanghai Gigafactory's 45m-span frame). Heavy-duty plants (≥50t cranes) require lattice columns and braking trusses. Load combinations must cover extreme scenarios, such as typhoon winds (≥0.75kN/m²) and seismic forces (PGA 0.2g).
Innovative Joints & Materials
- Smart Joints: Huawei's factory uses slip-critical bolts + end-plate connections for rapid assembly.
- Weathering Steel: Baosteel's plant utilizes S355J2W steel, cutting coating costs and extending lifespan to 50 years.
Integrated Protection
- Hybrid Coatings: CATL factory applies "graphene-modified epoxy + intumescent coatings" for 2.5-hour fire resistance.
- Cathodic Protection: Magnesium anodes protect underground columns in chemical plants.
Sustainable Construction
- Green Practices: BYD's workshop reduces welding waste by 30% via BIM, with 65% bolted connections.
- BIPV Integration: LONGi's rooftop PV panels generate 1.2M kWh/year with 0.3kN/m² load capacity.
Future Trends
- Digital Twin: SANY's "Lighthouse Factory" monitors steel health via strain sensors + AI analytics.
- 3D Printing: CSCEC trials printed complex joints, slashing 40% and material waste 15%.

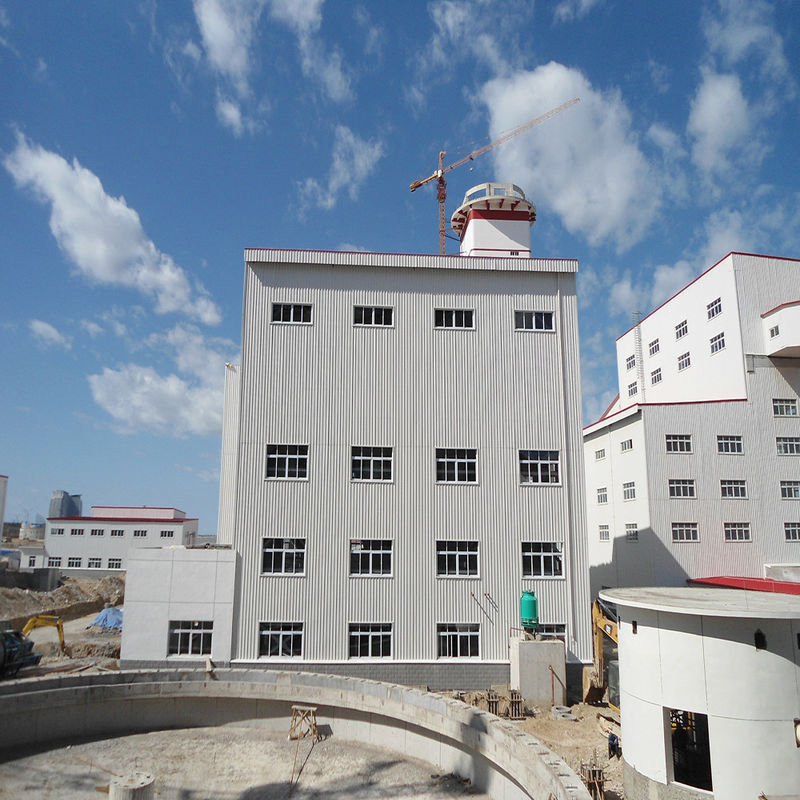

Multi-Story Steel Structure Warehouse
A multi-story steel structure warehouse is a multi-level building primarily constructed with steel as the main load-bearing component. It is widely used in industrial, logistics, and commercial sectors due to its flexible design, short construction period, and excellent seismic performance. It is a mainstream choice for modern storage facilities.
Material Characteristics and Properties
Steel Properties
- High Strength: Steel has high tensile and compressive strength, enabling it to bear significant loads.
- Lightweight: Compared to concrete structures, steel structures are lighter, reducing the burden on the foundation.
- Ductility: Steel is easy to shape into various forms, meeting complex architectural design requirements.
- Corrosion Resistance: Through surface treatments (e.g., galvanization, painting), steel can effectively resist corrosion.
- Fire Resistance: Steel loses strength at high temperatures, requiring fireproof coatings or boards for protection.
Structural Features
- Modular Design: Steel structure warehouses use prefabricated components, enabling quick assembly and disassembly.
- Large Span Design: The high strength of steel allows for large-span designs, providing more internal space.
- Seismic Performance: Steel's good ductility allows it to absorb energy during earthquakes, reducing structural damage.
- Environmental Friendliness: Steel is recyclable, reducing construction waste and aligning with sustainable development principles.
Application Advantages
- Fast Construction: Prefabricated components are factory-produced, and on-site installation is highly efficient.
- High Space Utilization: Multi-story design maximizes land use efficiency.
- Low Maintenance Costs: Steel structures are durable and require minimal maintenance.
Our Comprehensive Service
I. Customized Design & Quotation
We provide proposed design plans and competitive quotations based on your specific parameters:
- Building Dimensions: Length × width × height, eave height, roof type
- Doors and Windows: Dimensions, quantity, and preferred positions
- Local Climate Conditions: Wind speed, snow load, earthquake requirements
- Insulation Material: Sandwich panel or single metal sheet for roof and walls
- Crane Requirements: Need for crane beams and their capacity specifications
- Special Requirements: Fireproofing, isolated roof, roof ventilation, daylighting, etc.
II. Expert Engineering Solutions
Our experienced engineers will provide optimal programs tailored to your requirements.
III. Full-Service Support
We offer comprehensive services including design, manufacturing, installation, and after-sales support. Additional services available:
- On-site installation guidance by our engineer teams
- Detailed professional installation drawings
- 24-hour online technical support
IV. Quality Control Process
- Weekly Quality Audit meetings to address processing weaknesses
- Bi-weekly employee training sessions
- Production according to International Steel Structure Standards with ISO 9001 Quality Control System
- Monthly client feedback collection for continuous improvement
- Comprehensive quality inspection reports for every production process
Frequently Asked Questions
I. What kind of Industry Steel Workshop do you need?
Our experienced engineers can design buildings of any shape according to your requirements. We understand that your building is a major investment and we take it as seriously as you do.
II: Are you manufacturer or trade company?
We are professional manufacturers of steel structure buildings.
III: Do you offer guiding installation on site overseas for warehouse building?
Yes, we can provide installation, supervision, and training services. We will dispatch our engineer team to your country to guide assembly work and provide detailed professional installation drawings. Our technical support team remains available 24/7 to assist with your steel structure building installation.
IV: What's the quality assurance you provided and how do you control quality?
Our professional QC team monitors quality at all manufacturing stages - from raw materials to finished goods. We also accept third-party international inspection agencies such as SGS and BV to verify quality.
V: Could you offer designing service?
We have a complete engineering team using state-of-the-art design and manufacturing software (Tekla, Advance Steel, AutoCAD, PKPM, MTS, 3D3S). We provide economical solutions to your needs at no extra cost for preliminary design and costing.
VI: Is there any warranty available on the steel structure buildings?
Our steel structure buildings come with limited warranty. With proper material quality, design standards, construction quality, and maintenance, these structures can last 50 to 100 years.
Project Specification Form
| Item |
Specification |
Your Requirements |
| 1 |
Location (where will be built?) |
_____country, area |
| 2 |
Size: length × width × height |
_____mm × _____mm × _____mm |
| 3 |
Wind load (max. wind speed) |
_____kn/m², _____km/h, _____m/s |
| 4 |
Snow load (max. snow height) |
_____kn/m², _____mm |
| 5 |
Anti-earthquake |
_____level |
| 6 |
Brickwall needed or not |
If yes, 1.2m high or 1.5m high |
| 7 |
Thermal insulation |
If yes, EPS, fiberglass wool, rockwool, PU sandwich panels; if not, metal steel sheets |
| 8 |
Door quantity & size |
_____units, _____(width)mm × _____(height)mm |
| 9 |
Window quantity & size |
_____units, _____(width)mm × _____(height)mm |
| 10 |
Crane needed or not |
If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
