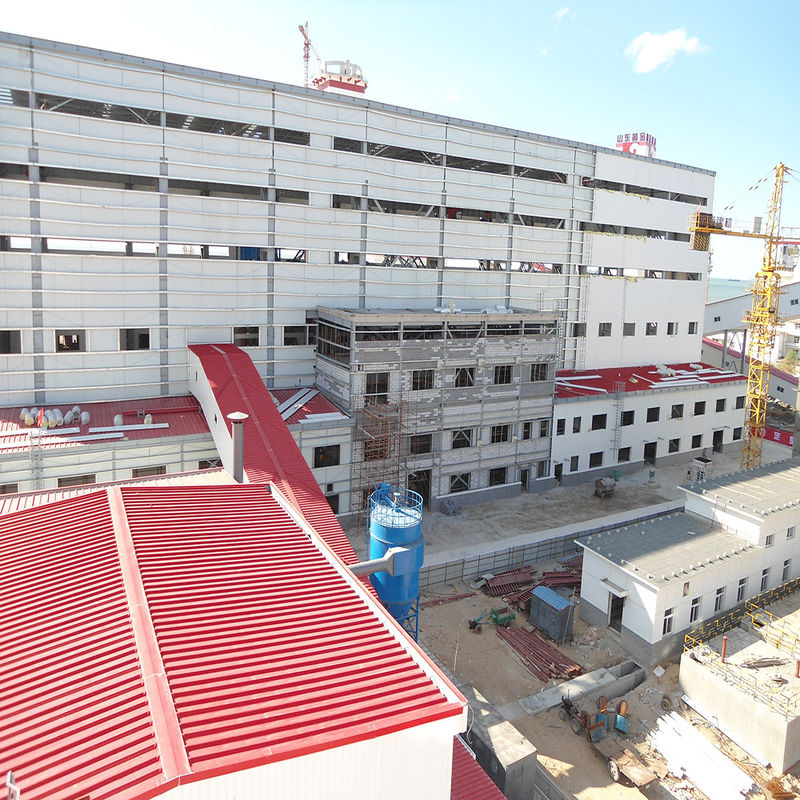

Prefabricated Steel Structure Building - Safe, Durable Large Metal Sheds & Workshops
Our prefabricated steel structure buildings offer the perfect combination of safety, durability, and cost-effectiveness for industrial workshops and large storage facilities.
| Design Dimension |
Key Points |
Technical Details |
| Structural Safety |
Seismic design, load calculation, fire and corrosion protection |
Flexible joints, BRB dampers; integrated dead/live/wind/snow load analysis; fireproof coating (≥2h) + hot-dip galvanizing |
| Material Selection |
High-strength steel (Q345), anti-corrosion/fireproof materials, insulation |
Main beams/columns with Q345 steel; polyurethane sandwich panels (fire rating B1); rock wool insulation (density≥80kg/m³) |
| Prefab Component Design |
Large-span modular design, standardized joints, transportation optimization |
30m+ trusses; bolted-welded hybrid joints; segmented components (length≤12m) |
| Energy Efficiency |
Natural lighting/ventilation, PV roof, rainwater recycling |
Skylights (≥15% coverage); rooftop PV (efficiency≥20%); underground rainwater storage (≥100m³) |
| Construction Quality |
Factory precision, on-site installation standards, non-destructive testing |
Laser calibration (error±3mm); 100% bolt torque inspection; UT for welds (coverage≥30%) |
Detailed Specifications
1. Structural Safety
- Seismic Design: Buckling-Restrained Braces (BRBs) and flexible steel frames in high-seismic zones to dissipate energy through plastic deformation
- Load Calculation: Includes crane loads (e.g., 20t overhead crane) and equipment vibration loads with dynamic analysis per GB 50009-2012
- Fire & Corrosion Protection: Thick fireproof coatings (fire resistance ≥2 hours) and hot-dip galvanizing + epoxy primer for industrial environments
2. Material Selection
- Main Steel: Q345B steel (yield strength 345MPa) for primary structures and Q235B steel for secondary components
- Envelope Materials: Polyurethane sandwich panels (thermal conductivity ≤0.022W/m*K) for walls/roof, combining insulation and fire resistance
- Connection Materials: Grade 10.9 bolts and submerged arc welding ensure joint strength and airtightness
3. Prefab Component Design
- Large-Span Optimization: Trusses (span≥30m) or portal frames minimize internal columns, maximizing usable space
- Standardized Joints: Predefined joint catalogs (e.g., end-plate connections) reduce fabrication complexity and cut 15%-20% costs
- Transportation Segmentation: Components segmented per road limits (length≤12m, width≤3m), with on-site assembly error≤5mm
4. Energy Efficiency
- Passive Design: Skylights (≥15% coverage) and sidewall louvers reduce lighting and ventilation energy use
- Active Systems: PV systems (≥200kW*h/day) and waste heat recovery achieve 30%+ energy self-sufficiency
- Resource Recycling: Recycled steel (recovery rate≥85%) and demountable foundations enable 90%+ material reuse
5. Construction Quality Control
- Factory Prefabrication: CNC cutting and robotic welding ensure component precision (tolerance±2mm)
- On-Site Management: BIM clash detection pre-installation; total station checks column verticality (deviation≤H/1000)
- Acceptance Standards: Per GB 50205-2020: 100% bolt torque inspection; ≥95% welds meet Grade II+ quality
Our Comprehensive Services
I. Custom Design & Quotation
- Building Dimension: Length*width*height, eave height, roof type etc.
- Doors and windows: Dimension, quantity, position to put them if you have your own requirements
- Local climate: Wind speed, snow load, earthquake etc.
- Insulation material for roof and wall: Sandwich panel or single metal sheet
- Crane if have: Do you need crane beam inside the steel structure? And its capacity
- Other requirements: Fire proofing, isolated roof, roof ventilation and daylighting etc
II. Engineering Expertise
Our experienced engineers will provide the optimal solution based on your specific requirements.
III. Complete Service Package
We offer comprehensive services including design, manufacturing, installation, and after-sale support. Optional services include on-site installation guidance, supervision, and training.
We dispatch engineer teams internationally to guide assembly work, providing detailed professional installation drawings and maintaining 24-hour online support.
IV. Quality Control Process
- Weekly Quality Audit meetings to address processing weaknesses
- Bi-weekly employee training sessions
- Production according to International Steel Structure Standards with ISO 9001 Quality Control System
- Monthly client feedback sessions for continuous improvement
- Comprehensive quality inspection reports for every production process
Frequently Asked Questions
I. What kind of Industry Steel Workshop do you need?
Our experienced engineers can design buildings to your exact specifications. We take your investment as seriously as you do.
II. Are you manufacturer or trade company?
We are professional manufacturers of steel structure buildings.
III. Do you offer guiding installation on site overseas for warehouse building?
Yes, we provide optional installation guidance, supervision, and training services. Our engineer teams can travel internationally to guide assembly work, supported by detailed installation drawings and 24-hour online assistance.
IV. What's the quality assurance you provided and how do you control quality?
Our professional QC team monitors quality at all manufacturing stages - from raw materials to finished goods. We also accept third-party inspections from agencies like SGS or BV.
V. Could you offer designing service?
Our complete engineering team uses state-of-the-art design software (Tekla, Advance Steel, Auto CAD, PKPM, MTS, 3D3S) to provide economical solutions. Preliminary costing and design are provided at no extra cost.
VI. Is there any warranty available on the steel structure buildings?
Our steel structures come with limited warranties and can last 50-100 years depending on material quality, design standards, construction quality, and maintenance.
| 1 |
Location (where will be built?) |
_____country, area |
| 2 |
Size: length*width*height |
_____mm*_____mm*_____mm |
| 3 |
wind load (max. wind speed) |
_____kn/m2, _____km/h, _____m/s |
| 4 |
snow load (max. snow height) |
_____kn/m2, _____mm |
| 5 |
anti-earthquake |
_____level |
| 6 |
brickwall needed or not |
If yes, 1.2m high or 1.5m high |
| 7 |
thermal insulation |
If yes, EPS, fiberglass wool, rockwool, PU sandwich panels; if not, metal steel sheets |
| 8 |
door quantity & size |
_____units, _____(width)mm*_____(height)mm |
| 9 |
window quantity & size |
_____units, _____(width)mm*_____(height)mm |
| 10 |
crane needed or not |
If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
