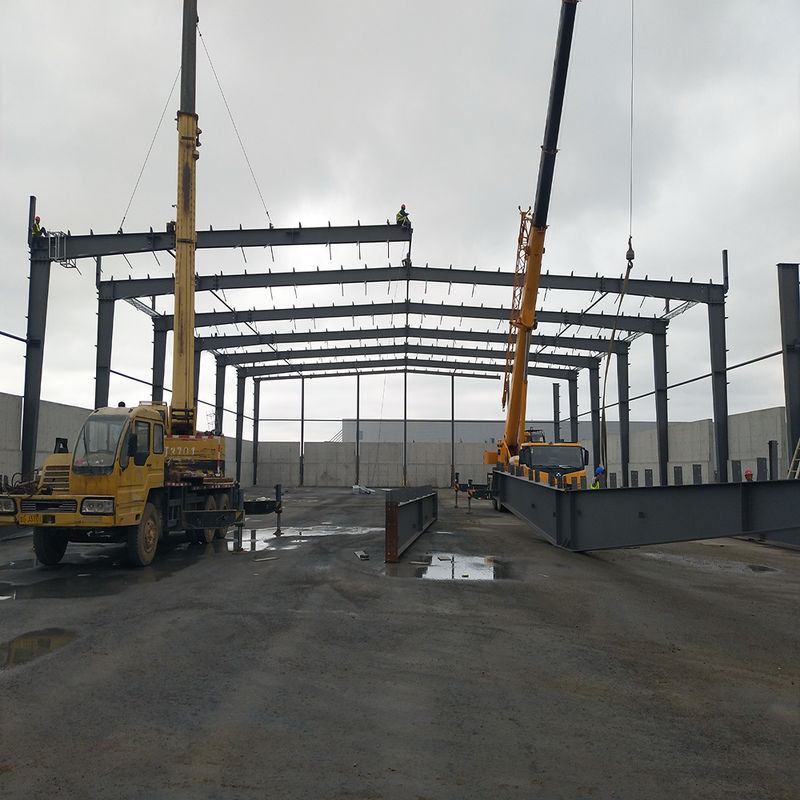

Modular Steel Frame Building Workshop Prefabricated Metal Structure Warehouse
Our prefabricated steel structure warehouse combines modular design with high-strength materials for superior durability and cost efficiency. Engineered for industrial applications, it offers exceptional structural performance with customizable features.
Key Features & Technical Specifications
| Design Dimension |
Key Points |
Technical Details |
| Structural Safety |
Seismic/wind resistance, dynamic load optimization, fire and corrosion protection |
BRB dampers, wind tunnel testing; fireproof coating (≥2h) + hot-dip galvanizing |
| Material Selection |
High-strength steel, lightweight envelope, eco-friendly materials |
Q355B steel (yield strength≥355MPa); polyurethane panels (fire rating B1); recycled steel usage≥30% |
| Prefab Component Design |
Large-span modular design, standardized joints, transportation segmentation |
40m-span trusses; bolted-welded hybrid joints; segments≤15m (transport height≤4.5m) |
| Energy Efficiency |
Natural ventilation/lighting, PV systems, rainwater recycling |
Skylights (≥20% coverage); PV efficiency≥22%; underground rainwater storage≥150m³ |
| Construction Quality |
High-precision prefabrication, on-site assembly management, digital acceptance |
BIM modeling (±3mm); UT for welds (coverage≥40%); 100% bolt torque inspection |
Detailed Specifications
1. Structural Safety
- Seismic & Wind Resistance: Buckling-Restrained Braces (BRBs) and flexible frames dissipate seismic energy; wind tunnel tests validate load distribution
- Dynamic Load Design: Simulate crane loads (e.g., 50t overhead cranes) and stacking loads per GB 50009-2012, ensuring joint fatigue life≥50 years
- Fire & Corrosion Protection: Intumescent coatings (fire resistance≥2h) and hot-dip galvanizing + epoxy coatings for harsh environments
2. Material Selection
- Main Steel: Q355B steel (tensile strength 470-630MPa) for primary structures; cold-formed steel (1.5-3mm thickness) for lightweight needs
- Envelope System: Polyurethane panels (thermal conductivity≤0.024W/m*K) with rock wool insulation (density≥100kg/m³)
- Eco-Materials: Recycled steel (recovery rate≥30%) and solvent-free epoxy flooring (VOC≤50g/L) reduce carbon footprint
3. Prefab Component Design
- Large-Span Modularization: 40m-span trusses or space frames maximize storage space (clear height≥10m)
- Standardized Joints: Predefined joint catalogs (e.g., rigid beam-column connections) cut welding time by 25%
- Transportation & Assembly: Segments≤15m with temporary bracing; on-site assembly error≤3mm
4. Energy Efficiency
- Passive Design: Skylights (≥20% coverage) and smart louvers reduce HVAC energy use by 40%
- Renewable Energy: Monocrystalline PV panels (≥300kW*h/day) and ground-source heat pumps cover 30%+ energy demand
- Resource Recycling: Bolted connections and precast foundations enable 95%+ material recovery at end-of-life
5. Construction Quality Control
- Factory Prefabrication: Laser cutting (±1mm) and robotic welding (99%) ensure component consistency
- On-Site Management: BIM + 3D scanning monitors installation; column verticality≤H/1000, beam≤L/1500
- Acceptance Standards: Per GB 50205-2020: Welds: UT≥40%, MT full coverage; Bolts: 100% torque inspection, preload error≤±10%
Product Applications
Our pre-engineered steel buildings are ideal for:
- Industrial warehouses and storage facilities
- Manufacturing plants and workshops
- Agricultural buildings and hangars
- Commercial showrooms and retail spaces
An efficiently designed pre-engineered building can be lighter than conventional steel buildings by up to 30%, resulting in material savings and reduced structural costs.
Standard Specifications
| Component |
Specification |
| Main Steel Frame |
Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel
Surface: Hot Dip Galvanized or Painted
Connection: All Bolts Connection |
| Supporting System |
Roof Purlin: C or Z Section Steel, Q235B
Wall Purlin: C or Z Section Steel, Q235B
Bracing: Steel Rod, Q235B
Cross Support: Steel Rod, Q235B
Column Support: Angle Steel; Steel Rod; Q235B
Angle Brace: Angle steel, Q235B
Tie Bar: Steel Pipe, Q235B |
| Roof & Wall System |
1. Single Colorful Corrugated Steel Sheet; Thickness: 0.3-0.8mm
2. Sandwich Panel with EPS, Rock Wool, Fiberglass, PU; Thickness: 50-150mm |
| Accessories |
Door: Sliding; Rolled Up Door (Manual/Auto)
Window: Aluminum Alloy; PVC
Downspout: PVC pipe
Gutter: Galvanized Steel Sheet; Stainless Steel
Ventilator: Stainless Steel Turbine Ventilator
Skylight Belt: FRP or PC semi-transparent Skylight Belt
Flash: Color Steel Sheet
Fittings: Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc |
Our Comprehensive Services
I. Custom Design & Quotation
We provide tailored design plans and competitive quotations based on:
- Building dimensions (length × width × height, eave height, roof type)
- Door and window specifications (dimensions, quantity, placement)
- Local climate conditions (wind speed, snow load, seismic requirements)
- Insulation material preferences (sandwich panel or single metal sheet)
- Crane requirements (capacity and specifications if needed)
- Special requirements (fireproofing, isolated roof, ventilation, daylighting)
II. Engineering Expertise
Our experienced engineers provide optimal solutions tailored to your specific requirements.
III. Complete Project Support
We offer comprehensive services including:
- Custom design and engineering
- Precision manufacturing
- On-site installation support
- After-sales service
Optional services include installation supervision and training. We can dispatch engineers to guide assembly and provide detailed installation drawings with 24/7 online support.
IV. Quality Control Process
- Weekly quality audit meetings to address process improvements
- Bi-weekly employee training sessions
- ISO 9001 compliant manufacturing
- Monthly client feedback collection for continuous improvement
- Comprehensive quality inspection reports for all production stages
Frequently Asked Questions
What kind of industrial steel workshop can you provide?
Our experienced engineers can design buildings to your exact specifications. We treat your building investment with the same seriousness you do.
Are you a manufacturer or trading company?
We are a professional manufacturer of steel structure buildings.
Do you offer on-site installation guidance overseas?
Yes, we provide optional installation, supervision, and training services. Our engineers can travel to your location with detailed installation drawings and 24/7 online support.
What quality assurance do you provide?
Our professional QC team monitors quality at all manufacturing stages. We welcome third-party inspections from agencies like SGS or BV.
Do you offer design services?
Our complete engineering team uses advanced software (Tekla, AutoCAD, PKPM, etc.) to provide economical solutions. Preliminary costing and design are provided at no extra cost.
What warranty do you offer?
Steel structure buildings typically have a lifespan of 50-100 years, depending on material quality, design standards, construction quality, and maintenance.
Project Inquiry Form
| 1. Location (where will be built?) |
_____country, area |
| 2. Size: length × width × height |
_____mm × _____mm × _____mm |
| 3. Wind load (max. wind speed) |
_____kn/m², _____km/h, _____m/s |
| 4. Snow load (max. snow height) |
_____kn/m², _____mm |
| 5. Anti-earthquake requirements |
_____level |
| 6. Brick wall needed? |
If yes, 1.2m high or 1.5m high |
| 7. Thermal insulation |
If yes, EPS, fiberglass wool, rockwool, PU sandwich panels; if not, metal steel sheets |
| 8. Door quantity & size |
_____units, _____(width)mm × _____(height)mm |
| 9. Window quantity & size |
_____units, _____(width)mm × _____(height)mm |
| 10. Crane needed? |
If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
