Low Carbon Steel Frame Warehouse Storage Food Plant Sustainable Steel Buildings

Steel structure Design Low Carbon Food Plant Steel Structure warehouse

Customized Steel Structure for Warehouse / Workshop / Hangar / Show Hall
Steel structure building warehouse is a new type of light steel structure building system formed from a main steel framework comprised of H section, Z section and U section steel components, the roof and walls utilizing a variety of panels and other components such as windows, doors, and cranes.
Steel structures are mainly used for construction workshop, warehouse, apartment, garage industrial building, agriculture building, sport stadium, show hall, steel hangar and other functional steel buildings.

Steel structure Design Low Carbon Food Plant Steel Structure warehouse

After the laying is completed, find the rules for the anchor bolts. Strictly position according to the axis and elevation provided.

Find the rules: It is required that all anchor bolts are aligned and the steel columns are placed in a straight line.

When hoisting steel columns, the foundation nuts should be leveled in advance. During hoisting, no one is allowed to stand within the lifting range of the crane. After the steel columns are basically in place, people should install them. The anchor nut should be tightened.

Lifting of steel beams after assembly: After the construction of steel column tie rods/column supports is completed, the steel beams will be lifted

Tie rod connection between steel beams: must achieve bolt tightening and consistent direction

The roof steel beams use high-strength bolts and do not require welding.

Platform beams are divided into main beams and secondary beams: the main beams are generally welded, and the wing plates are welded. Secondary beams are generally not welded.

Roof inner panel completed

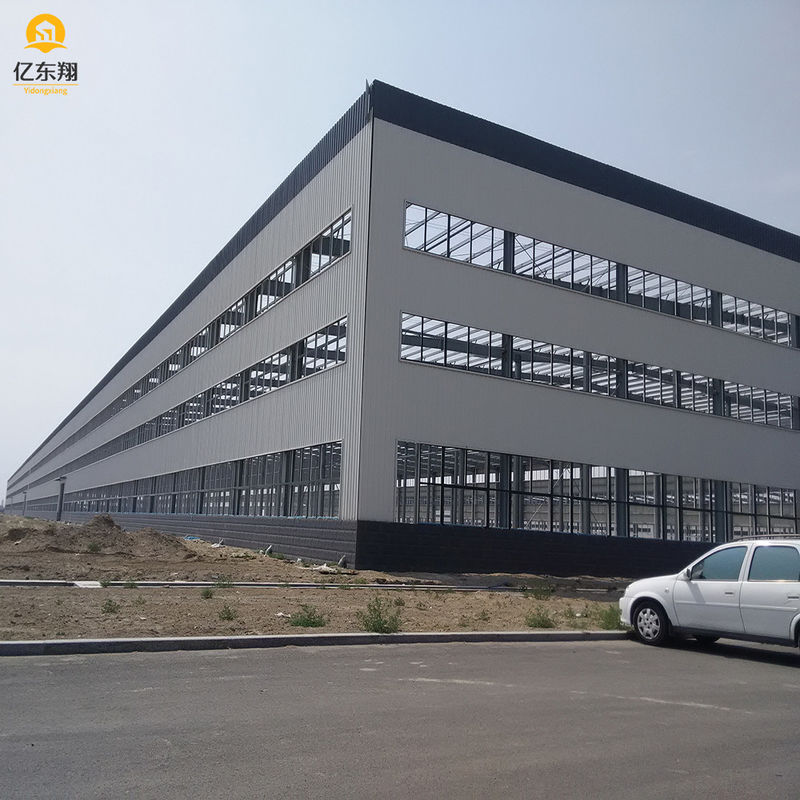

Finished photo
