Modern Prefab Steel Structure Commercial Building Aesthetic Appeal

Modern Prefab Steel Structure Commercial Building Aesthetic Appeal

Brand Name:	YDX
Model Number:	YDXC123
MOQ:	1TON
Price:	USD760-1000/TON
Delivery Time:	25 DAYS
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,BV,SGS,CE

Main Steel Frame:

Q235 H Steel Or Box Shape Column

Wall &roof Clading:

Sandwich Panel With Glass Curtain Wall For Wall, Roof Sandwich Panels

Building Type:

Commercial Building

Application:

Commercial Building

After-sales Service:

Guide Installation Or Install The House On Site

Transport Package:

Steel Pallet And Shipping In Container

Packaging Details:

All steel structures components are consolidated in steel pallets

Supply Ability:

10000TON/MONTH

Highlight:

Modern Steel Structure Commercial Building

Prefab Steel Structure Commercial Building

Modern Prefab Commercial Buildings

Product Description

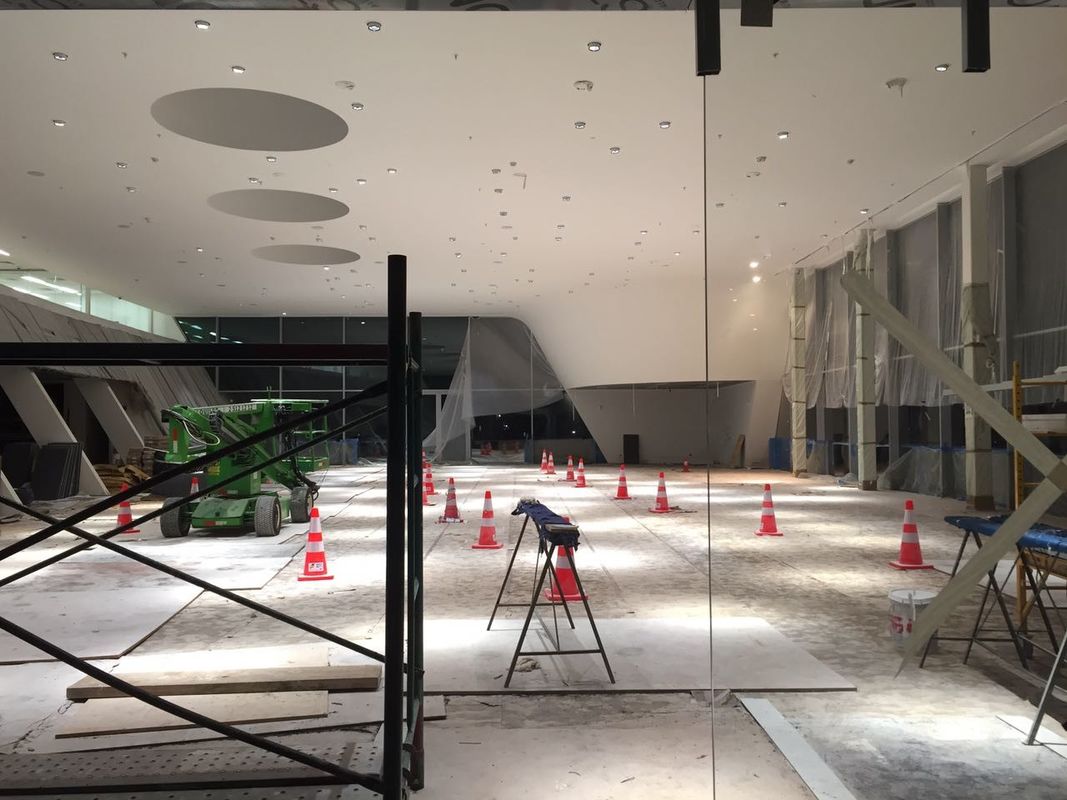

Steel Structure Commercial building Exhibition Hall /Showroom/4s Car Shop

Case 1: 4s Car Shop
Features: The frame-support structure is adopted, the floor is the composite floor of pressed steel plate, and the external wall is the glass curtain wall.

Advantages: Short construction period, high space utilization, modern appearance.

Components		Specifications
Embedded Parts	Anchor Bolt	M30*1050
	High Strength Bolt	M20,10.9S
	Common Bolt	M20
	Galvanized Bolt	M12
	Shear Nail	M19*80
	Tir Rod	Φ12
	Brace Rod	Φ32*2.5
	Self-tapping Screw	M5
Main Steel structure part	Steel Column(Q355B)	H500X250X8X12,H450X220X8X12 ,H300~700X250X6X10
	Wind Column(Q355B)	H400X200X6X8
	Roof Frame Beam(Q355B)	H700~450X200X6X10,H450X200X6X10
	Main Beam(Q355B)	H600X220X8X14
	Secondly Beam(Q355B)	HN346X174X6X9
	Ring Beam(Q235B)	100*1.8
	Stairs	[20U-steel+3mm Riffled plate
	RoofPurlin(Q235B)	C1205020*2.0
	Tir Bar(Q235B)	Φ140*4.0
	Column Brace	Φ140*4.0
	Horizontal Brace	Φ25 Round bar
	Angle Brace	L50*4.0
	Roof Purlin(Q235B)	Z250X75X20X2.2
	Wall Purlin(Q235B)	C220X70X20X2.2
	Connecting Panel(Q355B)	6-20MM steel panel
Other Steel structure parts	Rolling Gate(including motor)	4000X3500X2 PCS,3200X3500X1 PCS
	Aluminum Louvers	1m high
	Grating +Hand rail	1m high
	Floor Deck	1.0Thickness 880#
	Damper	2.0Thickness Galvanized panel
	Roof Panel	50mmThickness rock sandwich panel
	External Wall panel	50mm Thickness rock sandwich panel
	Trimming	0.5 thickness
	Down pie(including parts)	φ110PVC
	Gutter(including parts)	1.2 Thickness of stainless gutter

Modern Prefab Steel Structure Commercial Building Aesthetic Appeal 0

Modern Prefab Steel Structure Commercial Building Aesthetic Appeal 1

Modern Prefab Steel Structure Commercial Building Aesthetic Appeal 2

Modern Prefab Steel Structure Commercial Building Aesthetic Appeal 3

Modern Prefab Steel Structure Commercial Building Aesthetic Appeal 4

Modern Prefab Steel Structure Commercial Building Aesthetic Appeal 5

Modern Prefab Steel Structure Commercial Building Aesthetic Appeal 6

Case 2: Container house coffee shop

Modern Prefab Steel Structure Commercial Building Aesthetic Appeal 7

Modern Prefab Steel Structure Commercial Building Aesthetic Appeal 8

Case 3: Container house garden

Modern Prefab Steel Structure Commercial Building Aesthetic Appeal 9

Case 4: Steel structure building for sports

Modern Prefab Steel Structure Commercial Building Aesthetic Appeal 10

Modern Prefab Steel Structure Commercial Building Aesthetic Appeal 11

Modern Prefab Steel Structure Commercial Building Aesthetic Appeal 12

Modern Prefab Steel Structure Commercial Building Aesthetic Appeal 13

Packing and loading

Shipment via 20'/40'/40HC/40OT sea containers

*All steel structure weld components are carefully packed with blankets or bubble wrap to prevent scratches during loading and unloading.
*All steel structures components are consolidated in steel pallets within the container, optimizing loading and unloading time and labor costs.
*All sandwich panels are efficiently packed in steel pallets.
*Comprehensive container load plans and regional unloading plans are devised to avoid onsite retransportation.

Modern Prefab Steel Structure Commercial Building Aesthetic Appeal 14

Modern Prefab Steel Structure Commercial Building Aesthetic Appeal 15
