Prefab Steel Commercial Building with Sandwich Panels

Large Image : Prefab Steel Commercial Building with Sandwich Panels

Product Details:

Place of Origin:	CHINA
Brand Name:	YDX
Certification:	ISO,BV,SGS,CE
Model Number:	YDXC123

Payment & Shipping Terms:

Minimum Order Quantity:	1TON
Price:	USD760-1000/TON
Packaging Details:	All steel structures components are consolidated in steel pallets
Delivery Time:	25 DAYS
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	10000TON/MONTH

Contact Now Chat Now

Prefab Steel Commercial Building with Sandwich Panels

Description

Main Steel Frame:	Q235 H Steel Or Box Shape Column	Wall &roof Clading:	Sandwich Panel With Glass Curtain Wall For Wall, Roof Sandwich Panels
Building Type:	Commercial Building	Application:	Commercial Building
After-sales Service:	Guide Installation Or Install The House On Site	Transport Package:	Steel Pallet And Shipping In Container
Highlight:	Modern Steel Structure Commercial Building , Prefab Steel Structure Commercial Building , Modern Prefab Commercial Buildings

Modern Prefab Steel Structure Commercial Building

Designed for aesthetic appeal and functional versatility, this prefabricated steel structure is ideal for commercial applications including showrooms, exhibition halls, and 4S car shops.

Product Specifications

Attribute	Value
Main steel frame	Q235 H steel or box shape column
Wall & roof cladding	Sandwich panel with glass curtain wall for wall, roof sandwich panels
Building Type	Commercial Building
Application	Commercial building
After-sales Service	Guide Installation or Install The House on Site
Transport Package	Steel Pallet and Shipping in Container

Featured Applications

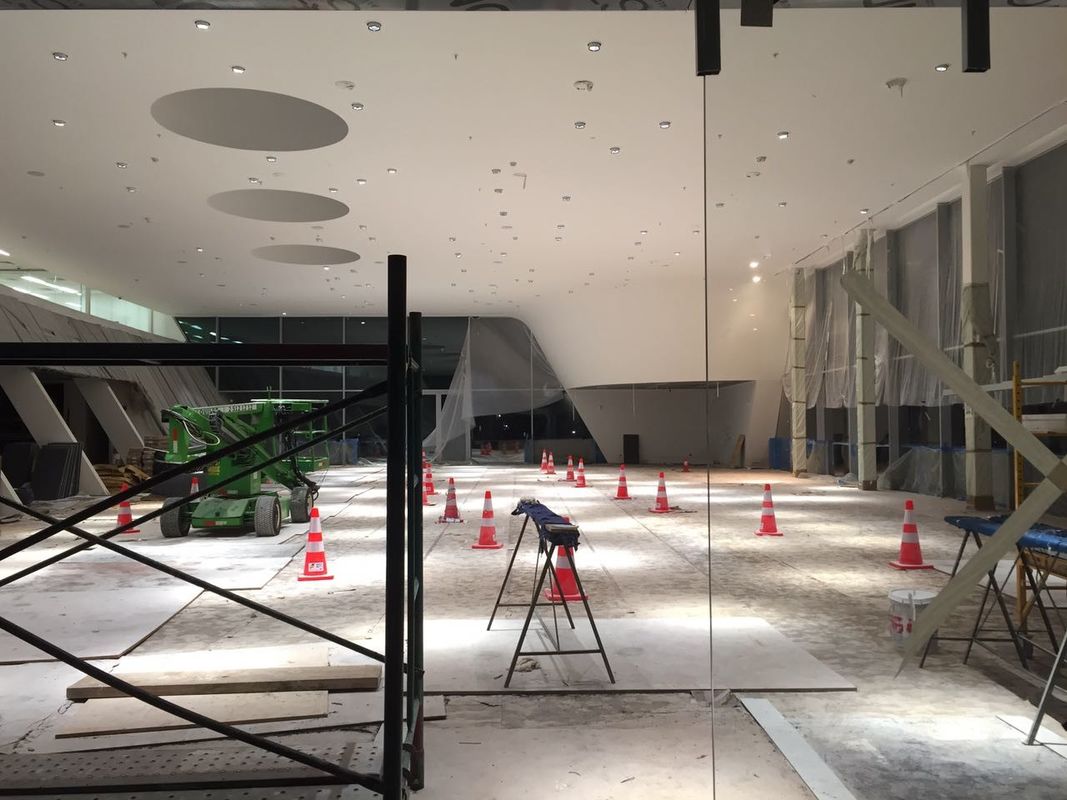

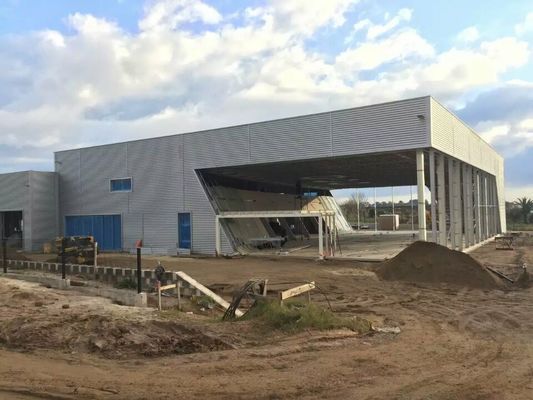

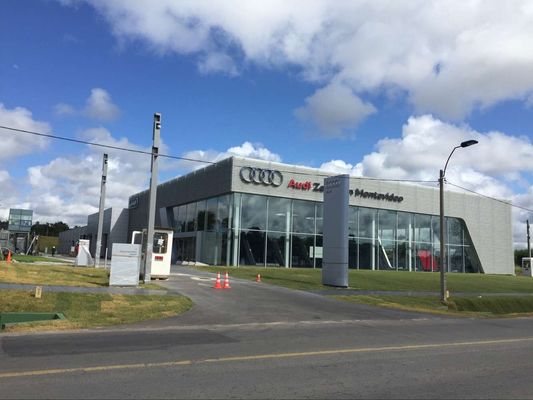

Case 1: 4S Car Shop

Frame-support structure design
Composite floor of pressed steel plate
External glass curtain wall
Short construction period
High space utilization
Modern appearance

Technical Components

Component	Specifications
Embedded Parts	Anchor Bolt \| M301050 High Strength Bolt \| M20,10.9S Common Bolt \| M20 Galvanized Bolt \| M12 Shear Nail \| M1980 Tir Rod \| Φ12 Brace Rod \| Φ32*2.5 Self-tapping Screw \| M5
Main Steel Structure	Steel Column(Q355B) \| H500X250X8X12,H450X220X8X12,H300~700X250X6X10 Wind Column(Q355B) \| H400X200X6X8 Roof Frame Beam(Q355B) \| H700~450X200X6X10,H450X200X6X10 Main Beam(Q355B) \| H600X220X8X14 Secondly Beam(Q355B) \| HN346X174X6X9 Ring Beam(Q235B) \| 1001.8 Stairs \| 20U-steel+3mm Riffled plate RoofPurlin(Q235B) \| C12050202.0 Tir Bar(Q235B) \| Φ1404.0 Column Brace \| Φ1404.0 Horizontal Brace \| Φ25 Round bar Angle Brace \| L50*4.0
Other Components	Rolling Gate(including motor) \| 4000X3500X2 PCS,3200X3500X1 PCS Aluminum Louvers \| 1m high Grating +Hand rail \| 1m high Floor Deck \| 1.0Thickness 880# Damper \| 2.0Thickness Galvanized panel Roof Panel \| 50mmThickness rock sandwich panel External Wall panel \| 50mm Thickness rock sandwich panel Trimming \| 0.5 thickness Down pie(including parts) \| φ110PVC Gutter(including parts) \| 1.2 Thickness of stainless gutter
