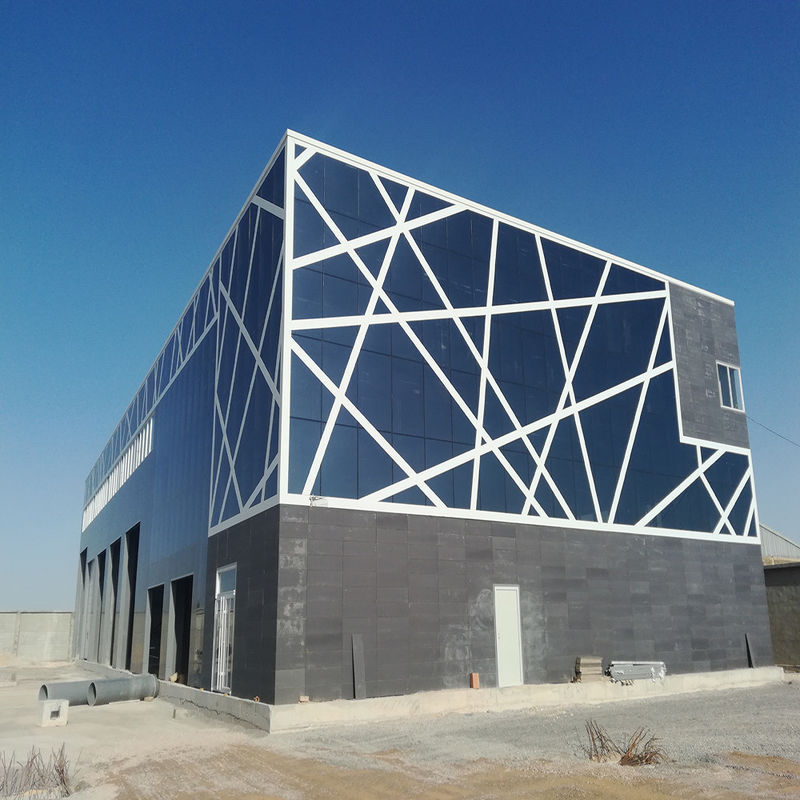

Fireproof Hotel Steel Frame Building Construction Prefab Apartment Building
Prefabricated Hotel Building Construction Steel Structure Apartments
Our prefabricated steel structure apartments combine structural safety, energy efficiency, and rapid construction for hotel and residential applications.
| Design Dimension |
Key Points |
| Structural Safety |
Seismic design, load calculation, fire and corrosion protection |
| Material Selection |
High-strength steel (Q235/Q345), anti-corrosion/fireproof materials, insulation materials |
| Prefab Component Design |
Standardized modules, joint optimization, transportation and installation convenience |
| Energy Efficiency |
Thermal insulation systems, green building materials, PV and rainwater recycling |
| Construction Quality |
Factory prefabrication accuracy, on-site installation standards, NDT and acceptance |
Detailed Specifications
1. Structural Safety
- Seismic Design: Flexible joints and energy-dissipating devices (e.g., dampers, BRBs) enhance energy absorption during earthquakes.
- Load Calculation: Accurately calculate dead loads, live loads, wind/snow loads, and verify compliance with local codes (e.g., GB 50009).
- Fire & Corrosion Protection: Apply intumescent fireproof coatings (fire resistance ≥2 hours) and hot-dip galvanizing or epoxy coatings.
2. Material Selection
- Steel Types: Q235/Q345 steel for main structures; cold-formed thin-walled steel for secondary components.
- Connection Materials: High-strength bolts (Grade 10.9) and CO₂ shielded welding ensure joint reliability.
- Auxiliary Materials: Rock wool (density ≥100kg/m³) or polyurethane sandwich panels (fire rating B1) for insulation.
3. Prefab Component Design
- Standardized Modules: Modular apartment units (e.g., 3m×6m) reduce production errors and improve assembly efficiency.
- Joint Optimization: Hybrid "bolt + weld" connections minimize residual stress and allow on-site adjustments.
- Transportation & Installation: Limit component size to transport regulations (e.g., height ≤4.5m) with pre-set lifting points.
4. Energy Efficiency
- Passive Design: Double-glazed Low-E windows and external insulation (U-value ≤0.4 W/(m²*K)) reduce energy use by 30%.
- Green Materials: Recycled steel (recovery rate ≥90%) and low-VOC paints (VOC ≤50g/L) minimize carbon footprint.
- Renewable Systems: Roof-integrated PV panels (efficiency ≥20%) and rainwater harvesting (capacity ≥50m³).
5. Construction Quality Control
- Factory Prefabrication: CNC cutting and robotic welding ensure precision (tolerance ±2mm).
- On-Site Installation: Follow "bottom-to-top, primary-to-secondary" sequence with real-time verticality monitoring (deviation ≤H/1000).
- Quality Acceptance: Ultrasonic testing (UT) for welds, 100% bolt torque inspection per GB 50205 standards.
Technical Specifications
| Item |
Specification |
| Steel column |
Q235,355B square tube column |
| Steel beam |
Q235,355B square tube column |
| Steel purlin |
C/Z section purlin or square tube |
| Downpipe |
UPVC |
| Gutter |
UPVC gutter |
| Roof material |
Corrugated steel sheet/sandwich panel |
| Wall material |
Sandwich panel/ALC panel |
| Door |
Aluminium door |
| Window |
Aluminium window |
Key Advantages
Performance Advantages
- High sealing and security
- Waterproof, windproof, fireproof, corrosion-resistant
- Cold-resistant, earthquake-resistant, soundproof
- Heat-insulating and reusable
- Enhances comfort and safety attributes
Cost Advantages
- Steel frame structure, sturdy and durable (30+ year lifespan)
- Convenient deployment reduces usage costs for long-term users
- Small footprint after disassembly minimizes storage costs
- No need for large machinery or installation experience
- Detachable structure reduces transportation costs
Environmental Benefits
- No construction waste generation
- No farmland occupation or damage
- Safe, low-carbon, environmentally friendly
- Green production and use
Our Services
Design & Quotation: We provide proposed design plans and competitive quotations based on your project parameters including building dimensions, door/window specifications, local climate conditions, and insulation requirements.
Engineering Support: Our experienced engineers will develop optimal solutions tailored to your specific requirements.
Comprehensive Services: We offer complete support including design, manufacturing, installation, and after-sales service.
Installation Support: Optional on-site guidance by our engineer teams, including detailed installation drawings and 24/7 online support.
Quality Control Process
- Weekly quality audit meetings to address processing weaknesses
- Bi-weekly employee training sessions
- ISO 9001 Quality Control System compliance
- Monthly client feedback collection for continuous improvement
- Comprehensive quality inspection reports for all production processes
Frequently Asked Questions
What kind of Industry Steel Workshop do you need?
Our experienced engineers can design buildings to your exact specifications. We treat your building investment with the same seriousness you do.
Are you manufacturer or trade company?
We are professional manufacturers of steel structure buildings.
Do you offer guiding installation on site overseas for warehouse building?
Yes, we provide optional installation guidance, supervision, and training services. Our engineers can be dispatched to your location with detailed installation drawings and 24/7 online support.
What's the quality assurance you provided and how do you control quality?
Our professional QC team monitors quality at all manufacturing stages. We accept third-party inspections from agencies like SGS and BV.
Could you offer designing service?
Yes, our complete engineering team uses advanced design software (Tekla, AutoCAD, PKPM, etc.) to provide economical solutions at no extra cost for preliminary designs.
Is there any warranty available on the steel structure buildings?
Our steel structures have a limited warranty. With proper maintenance, they can last 50-100 years depending on material quality and construction standards.
Project Information Request
Please provide the following details for an accurate quotation:
| Question |
Your Information |
| Location (where will be built?) |
_____country, area |
| Size: length*width*height |
_____mm*_____mm*_____mm |
| Wind load (max. wind speed) |
_____kn/m2, _____km/h, _____m/s |
| Snow load (max. snow height) |
_____kn/m2, _____mm |
| Anti-earthquake |
_____level |
| Brickwall needed or not |
If yes, 1.2m high or 1.5m high |
| Thermal insulation |
If yes, specify material (EPS, fiberglass wool, rockwool, PU sandwich panels) |
| Door quantity & size |
_____units, _____(width)mm*_____(height)mm |
| Window quantity & size |
_____units, _____(width)mm*_____(height)mm |
| Crane needed or not |
If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
