Sports Hall Gymnasium Design Steel Structure Basketball Court Construction
Steel Structure Sports Hall Gymnasium, Basketball Court Structure Sports Hall, Gymnasium Steel Structure Sports Hall.
Prefab Metal Gym Buildings
A steel building from YDX Steel is the modern solution for gymnasiums. Cities, schools, churches, and private clubs are taking advantage of steel construction on gymnasiums across the country. Steel structures feature clear span framing, allowing for the column-free interiors and high ceilings that metal gymnasiums require. Every steel building from YDX Steel is designed according to use, you'll work closely with our design team to maximize your space.
| Steel Structure Building Components |
| 1. Primary Framing |
Box beam column, cross steel column, H-shaped steel column, steel beam |
| 2. Secondary Framing |
Galvanized Z and C sections purlin |
| 3. Roof and Wall panels |
Steel sheet and insulated sandwich panels (EPS, fiberglass wool and PU) |
| 4. Steel Decking Floor |
Galvanized steel decking board |
| 5. Structural subsystem |
Divider, gutter, awning, partition wall |
| 6. Mezzanines, Platforms |
Painted or galvanized H beam |
| 7. Other Building Accessories |
Sliding doors, roll up doors, aluminium windows, louvers, etc. |
| Service Life |
50-70 years |
Support |
steel angle, steel pipe, steel round |
| Place of Origin |
Qingdao, Shandong, China |
Application |
workshop, warehouse, poultry house, garage etc |
| Grade |
Q235B, Q355B or as per customer's need |
Bolt Grade |
M20, M16, M14 etc |
| Connection |
intensive bolt, ordinary bolt |
Window |
PVC steel or aluminum alloy |
| Downspout |
PVC pipe or as per customer's request |
Door |
sliding or rolling door |
| Purlin |
C/Z shape profile |
Panel |
EPS/PU/fiber glass/rock wool |
| Main Frame |
Welded or hot rolled H-shaped steel, columns, beams, box beams and columns |
Drawings & Quotation
- Customized design is welcomed.
- In order to promise an accurate quotation and drawings, please let us know the length, width, eave height and local weather. We will quote for you promptly.

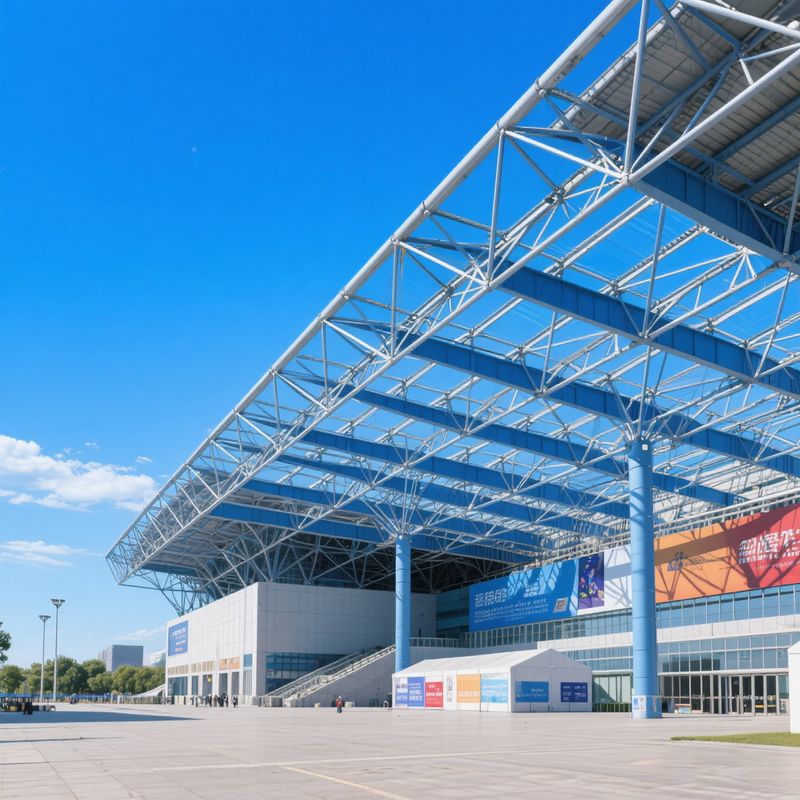

Main Steel Structure Frame
Main structure is made by steel pipe, we called it space frame structure, this type structure got light self weight, so that the column and concrete foundation no need very heavy, saved construction cost. Also the distance between support column can be very big, which is easy for the car under it to pass.
Steel Support System
The space frame support is made by round pipe, and the support full of the structure, which is a very stable and strong structure.
Wall & Roof Covering System
- Roof purlin: galvanized C steel, common choice for standard steel structure workshop building.
- Side purlin: galvanized C steel, the steel get galvanized manufacture treatment will get a longer life time.
- Roof sheet: use V840 steel sheet panel as standard roof cover, which is a popular choice for most of the workshop roof cover.
- Wall sheet: use aluminum plastic panel las wall panel, which is easy maintenance for after installation.
Product Application
Light Frame Steel Construction Hangar Design Prefabricated Steel Structure Factory Building Workshop warehouse
A pre-engineered steel building is a modern technology where the complete designing is done at the factory and the building components are brought to the site and then fixed/jointed at the site, all is bolt connection, no need any welding!
An efficiently designed pre-engineered building can be lighter than the conventional steel buildings by up to 30%. Lighter weight equates to less steel and potential price savings in structural framework.
SPECIFICATION FOR STEEL STRUCTURE BUILDING
| Component |
Specification |
Main Steel Frame
Steel Column & Beam |
- Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel
- Surface: Hot Dip Galvanized or Painted
- Connection: All Bolts Connection
|
| Supporting System |
- Roof Purlin: C or Z Section Steel, Q235B
- Wall Purlin: C or Z Section Steel, Q235B
- Bracing: Steel Rod, Q235B
- Cross Support: Steel Rod, Q235B
- Column Support: Angle Steel; Steel Rod; Q235B
- Angle Brace: Angle steel, Q235B
- Tie Bar: Steel Pipe, Q235B
|
| Roof & Wall System |
- Single Colorful Corrugated Steel Sheet; Thickness: 0.3-0.8mm
- Sandwich Panel with EPS, Rock Wool, Fiberglass, PU; Thickness: 50-150mm
|
| Accessories |
- Door: Sliding; Rolled Up Door (Manual/Auto)
- Window: Aluminum Alloy; PVC
- Downspout: PVC pipe
- Gutter: Galvanized Steel Sheet; Stainless Steel
- Ventilator: Stainless Steel Turbine Ventilator
- Skylight Belt: FRP or PC semi-transparent Skylight Belt
- Flash: Color Steel Sheet
- Fittings: Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc
|
Advantages of Galvanized H-beams
- Strong durability: The galvanized coating provides excellent corrosion resistance to H-beams, enabling them to withstand the humidity, ammonia, and other chemicals present in the chicken coop environment, thereby extending the lifespan of the structure.
- Structural stability: H-beams have high strength and rigidity, allowing them to bear the necessary loads in the chicken coop and maintain structural stability.
- Easy construction: H-beams can be processed and cut according to design requirements, making them easy to assemble and install, thereby saving construction time and labor costs.
- Recyclability: Galvanized H-beams are recyclable materials, meeting environmental requirements and reducing the consumption of natural resources.
Installation Process
- Method 1: We provide shop drawing before installation.
- Method 2: If you still don't know how to install, We will teach you the installation in our factory. When necessary, we will assemble a sample steel structure building for you.
Packing and Loading
All the structure components, panels, bolts and sort of accessories will be well packed with standard package suitable ocean transportation and loaded into 40'HQ. All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged.
Why Choose Us
- Professional design team, we could design the drawing as your requirement or calculate the steel quantity based on your drawing.
- Skilled fabrication team and advanced equipment. We make the independent production schedule to each project.
- One-stop service: We have completed lots such kinds of projects, we could provide the integrated proposal for your project.
- Professional QC team will guarantee that we will provide the production and service as your request.
- After sales service: If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us, we will try to provide the service as well as we can.
