Prefabricated Q355 Q235 Light Steel Aircraft Hangar Buildings 200mm - 1200mm Height

Prefabricated Q355 Q235 Light Steel Aircraft Hangar Buildings 200mm - 1200mm Height
Prefabricated Q355 Q235 Light Steel Aircraft Hangar Buildings 200mm - 1200mm Height
Prefabricated Q355 Q235 Light Steel Aircraft Hangar Buildings 200mm - 1200mm Height Prefabricated Q355 Q235 Light Steel Aircraft Hangar Buildings 200mm - 1200mm Height Prefabricated Q355 Q235 Light Steel Aircraft Hangar Buildings 200mm - 1200mm Height Prefabricated Q355 Q235 Light Steel Aircraft Hangar Buildings 200mm - 1200mm Height Prefabricated Q355 Q235 Light Steel Aircraft Hangar Buildings 200mm - 1200mm Height

Large Image :  Prefabricated Q355 Q235 Light Steel Aircraft Hangar Buildings 200mm - 1200mm Height

Product Details:
Place of Origin: CHINA
Brand Name: YDX
Certification: ISO,BV,CE
Model Number: YDX-SSH005
Payment & Shipping Terms:
Minimum Order Quantity: 1-10000 square meters
Price: USD 30-100 per square meter/Negotiable
Packaging Details: STEEL PALLET OR SUITABLE FOR SEA SHIPPING
Delivery Time: 25 DAYS
Payment Terms: L/C,Western Union,MoneyGram,T/T
Supply Ability: 10000TON/MONTH
Contact Now Chat Now

Prefabricated Q355 Q235 Light Steel Aircraft Hangar Buildings 200mm - 1200mm Height

Description
Drawing Design: SAP2000, AutoCAD, PKPM, 3D3S, TEKLA Main Steel Frame: H Steel, Z Or C Purlin
Secondary Frame: Hot Dipped Galvanized Purlin Door: Sliding Door Or Rolling Door
Software: CAD, Tekla, Pkpm, 3D3s Visit: Workshop Visit And Check Available
Main Frame: Light Steel Q355 Q235 Design Standard: AISC/EN/JIS/GB
Accessories: Window、Door、Gutter + Downspout Style: Customer Customization
Dimensions: Up To Customers' Requested Beam: H-section Beam
Roofing: Sandwich Panel. Single Steel Sheet Use: Workshop,Plant
Highlight:

Q235 Steel Aircraft Hangar Buildings

,

Steel Aircraft Hangar Buildings 1200mm

,

Prefabricated Aircraft Hangars 200mm

Prefabricated Q355 Q235 Light Steel Aircraft Hangar Buildings (200mm - 1200mm Height)
Product Overview

Steel structure warehouse designed specifically for aircraft hangars, offering superior strength, durability, and fire resistance.

Prefabricated Q355 Q235 Light Steel Aircraft Hangar Buildings 200mm - 1200mm Height 0
Key Advantages
  • Strength and Durability: Withstands extreme weather conditions including hurricanes, earthquakes, and heavy snow loads with high strength-to-weight ratio.
  • Rapid Construction: Prefabricated components enable significantly faster assembly compared to traditional methods.
  • Design Flexibility: Allows for versatile architectural forms and large span capabilities.
  • Cost Efficiency: Long-term savings through minimal maintenance, pest resistance, and extended lifespan.
Project Specifications

Construction Year: 2009

Location: Western Australia

Area: 1248 square meters

Features: Steel frame with rock wool glass fiber insulated roof/walls, 30m large sliding door.

Prefabricated Q355 Q235 Light Steel Aircraft Hangar Buildings 200mm - 1200mm Height 1

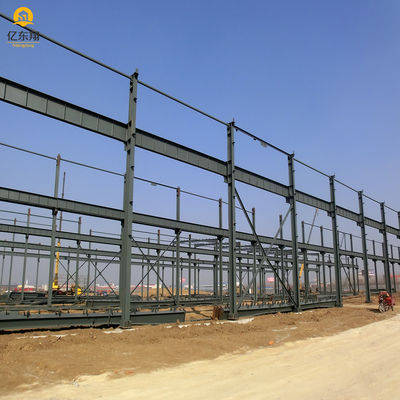

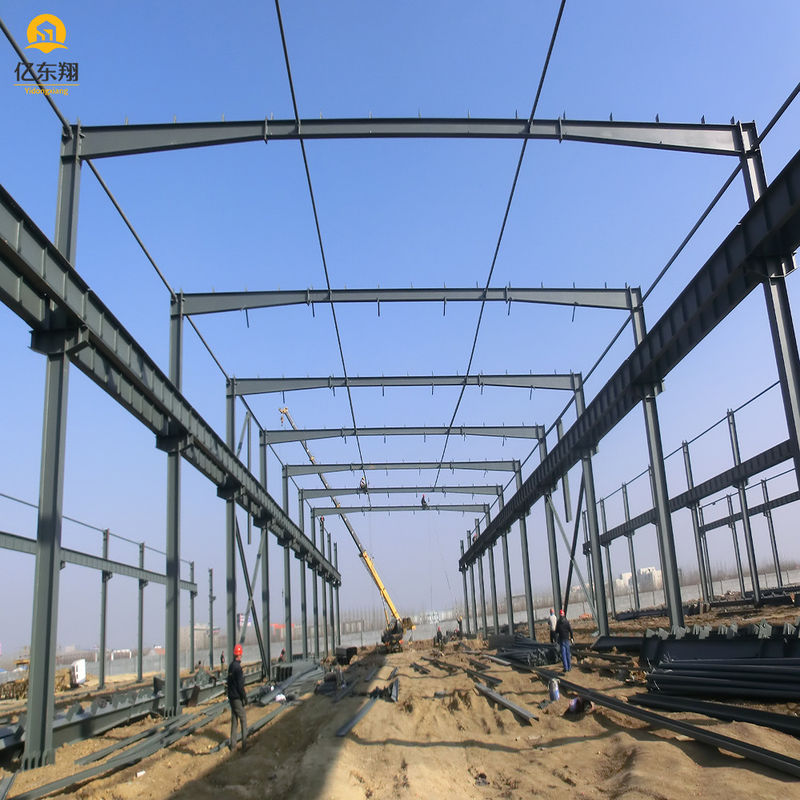

Steel Structure Composition

Metallic structure composed of interconnected steel members providing superior load-bearing capacity and rigidity. Offers material efficiency with smaller foundation requirements compared to concrete or wood structures.

Prefabricated Q355 Q235 Light Steel Aircraft Hangar Buildings 200mm - 1200mm Height 2
Dimensions
Parameter Range
H beam length 4000-15000mm
Thickness Web plate: 6-32mm, Wing plate: 6-40mm
Height 200-1200mm
Minimum Order 200 m²
Component Specifications
Component Specification
Main Steel Frame Column: Q235,Q355B Welded H Section Steel
Beam: Q235,Q355B Welded H Section Steel
Secondary Frame Purlin: Q235,Q355B C and Z purlin
Knee brace: Q235B Angle Steel
Tie rod: Q235B Circular Steel Pipe
Cladding System Roof/Wall Panel: EPS/Glass Fiber/Rock Wool/Pu Sandwich Panel or Steel Sheet
Accessories Window: Aluminium Alloy/PVC
Door: Sliding Sandwich Panel/Rolling Metal
Technical Parameters
Port Qingdao
Steel Texture Q235B,Q345B
Design Service Life 40 Years
Connection Methods Bolt Connection And Welded Connection
Production & Quality Assurance
Prefabricated Q355 Q235 Light Steel Aircraft Hangar Buildings 200mm - 1200mm Height 3
Support & Services
  • Comprehensive installation guidance and support
  • Technical troubleshooting assistance
  • Maintenance recommendations for optimal longevity
  • Customization options to meet specific requirements
Packaging & Shipping

Components securely packaged in protective materials on steel pallets for safe transportation. Tracked shipping with reliable carriers.

Prefabricated Q355 Q235 Light Steel Aircraft Hangar Buildings 200mm - 1200mm Height 4 Prefabricated Q355 Q235 Light Steel Aircraft Hangar Buildings 200mm - 1200mm Height 5
Quotation Requirements
1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. snow height) _____kn/m2, _____mm
5 Anti-earthquake _____level
6 Brickwall needed or not If yes, 1.2m high or 1.5m high
7 Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former
8 Door quantity & size _____units, _____(width)mm*_____(height)mm
9 Window quantity & size _____units, _____(width)mm*_____(height)mm
10 Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
